Product Details:
|
| Product Name: | Ac Fan Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Power: | 80-750W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 680w hvac fan motor,230v 4 speed blower motor,HVAC fan motor 380V |
||

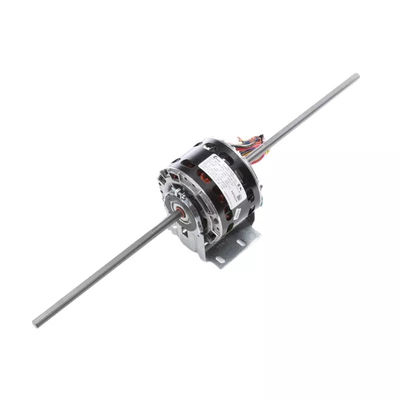

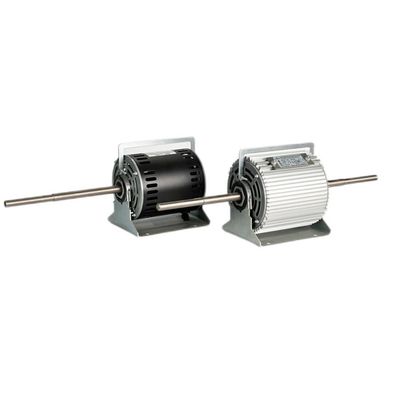

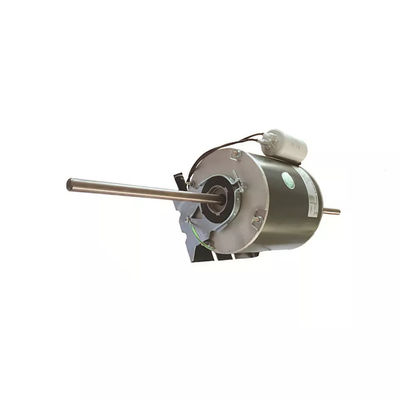

High power 4 speed 680W Indoor HVAC Blower AC fan motor
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality AC fan motor for air conditioning, heating and ventilation.This high power 4 speed motor is for high static pressure fan-coil air supply in air conditioning . Our AC fan motors are customized by different requirements.
We can also sell motors with fans as solution.
Quick Details
Output Power:80-750W
Type:Asynchronous Motor, Induction AC fan motor
Frequency:50/60hz
Phase:Single-phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-90W-4P | 220/110 | 50/60 | 800 | 90 |
| YSK-160W-4P | 220/110 | 50/60 | 1030 | 160 |
| YSK-300W-4P | 220/110 | 50/60 | 1100 | 300 |
| YSK-680W-4P | 220/110 | 50/60 | 1150 | 680 |
AC Fan Motor Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
Application
An HVAC motor may refer to two types of fan motors: the condenser fan motor located in the outdoor unit, and the blower motor located in the indoor unit. Both motors are important to the air circulation in and around the air conditioner, and they keep the room cool by blowing cool air into the room, while expelling warm air out of the room. Hengsheng can produce both type of ac fan motors, if customer can provide us the drawing or samples. Any inquiry regaring to AC fan motor please feel free to contact us.
