Product Details:
|
| Voltage: | 24-48V | Power: | 30-300W |
|---|---|---|---|
| Speed: | 1000-3000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-0.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 24v dc permanent magnet motor 300W,48V Permanent Magnet Brushed DC Motor,24v dc permanent magnet motor 30W |
||

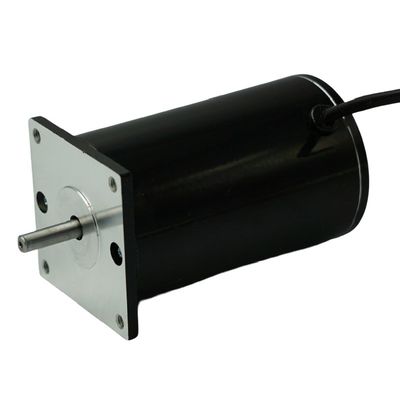

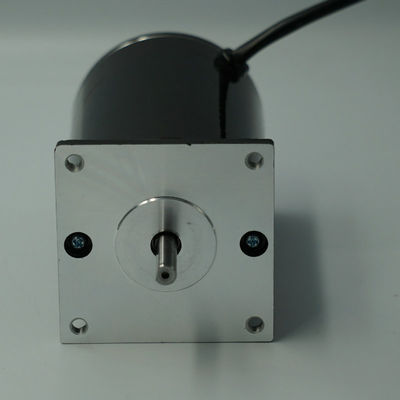

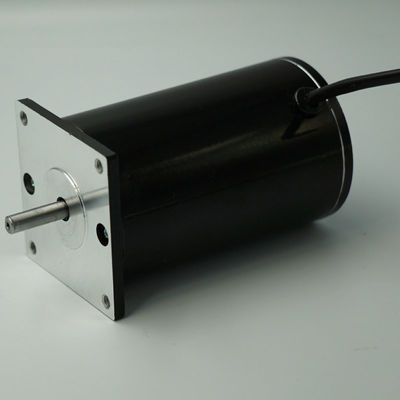

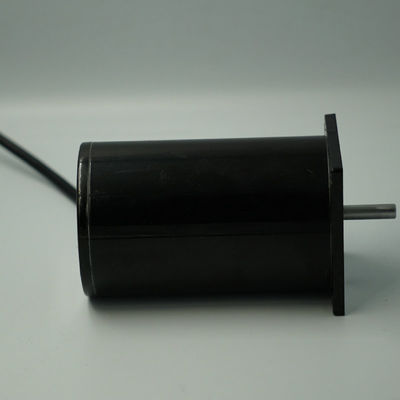

76ZYT 24V Permanent Magnet Brushed DC Motor for Swing Barrier Gate Intelligent Turnstile
Introduction
This is a permanent magnet brushed DC motor 30-300W use in automatic license plate recognition, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:30-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/100V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No load | Rated load | N.m TORQUE |
W Power |
Length |
||
| A CURRENT |
rpm SPEED |
A CURRENT |
rpm SPEED |
|||||
| 76ZYT001(040) | 24 | ≤0.8 | 2500±8% | ≤5.3 | 2000±8% | 0.4 | 84 | 112 |
| 76ZYT001(040) | 24 | ≤1 | 3600±8% | ≤7.5 | 3000±8% | 0.4 | 126 | 112 |
| 76ZYT001(040) | 100 | ≤0.2 | 2400±8% | ≤1.3 | 1900±8% | 0.4 | 80 | 112 |
| 76ZYT060 | 24 | ≤0.5 | 1500±8% | ≤4.7 | 1100±8% | 0.6 | 69 | 137 |
| 76ZYT060 | 24 | ≤1.3 | 3000±8% | ≤9.3 | 2500±8% | 0.6 | 157 | 137 |
| 76ZYT060 | 110 | ≤0.3 | 3700±8% | ≤2.5 | 3200±8% | 0.6 | 201 | 137 |
| 76ZYT075 | 24 | ≤0.6 | 3600±8% | ≤14 | 3000±8% | 0.75 | 236 | 152 |
| 76ZYT100 | 24 | ≤1 | 3600±8% | ≤18 | 3000±9% | 1 | 314 | 177 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
Permanent Magnet Brushed DC Motor Applications
A permanent magnet brushed DC motor is a rotating motor that converts DC electrical energy into mechanical energy (DC motor) or converts mechanical energy into DC electrical energy (DC generator) with a brush device. Different from brushless DC motors, brush devices are used to introduce or draw DC voltage and DC current. DC brushed motor is the basis of all motors, it has the characteristics of fast start, timely braking, smooth speed regulation in a large range, and relatively simple control circuit.
