Product Details:
|
| Product Name: | AC Fan Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Power: | 5-40W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 20w universal ac fan motor,50hz universal ac fan motor,ac blower motor 220v |
||

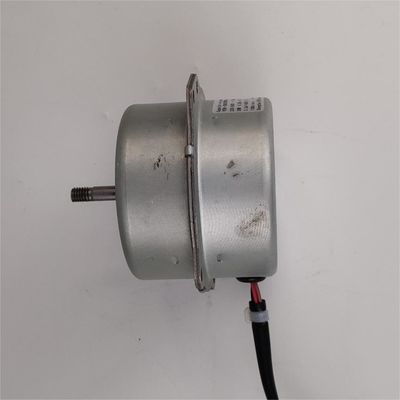

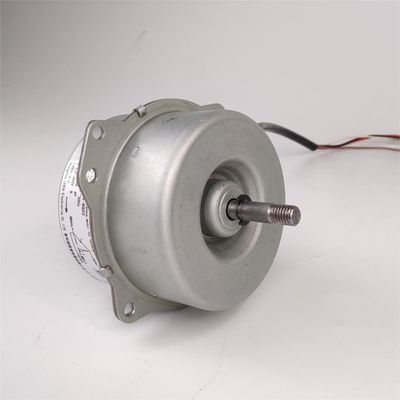

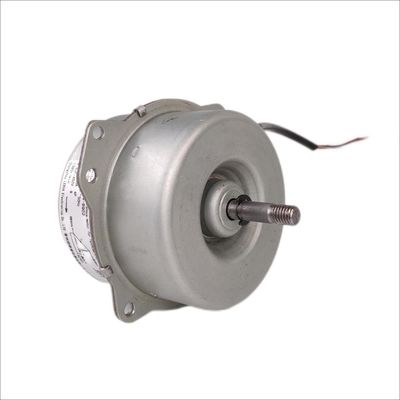

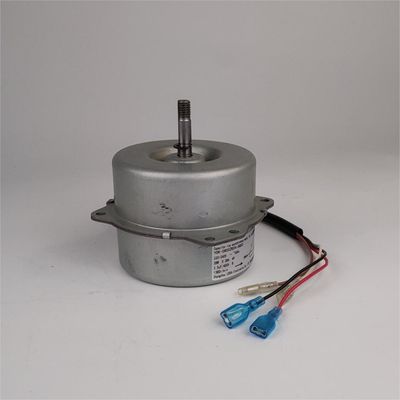

Single phase 20W 220V 50HZ YDK80mm AC fan motor for ventilation system
Introduction
This is a type of single phase AC capacitor run motor. It is designed for air purifier and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans etc. Motors are customized by different requirements and we can sell motors with fans as solution.
Quick Details
Output Power:8-40W
Type:AC fan motor
Frequency:50/60hz
Phase:Single-phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Voltage:115/120 V/208-230V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-10W-4P | 220/110 | 50/60 | 1100 | 10 |
| YSK-20W-4P | 220/110 | 50/60 | 1350 | 20 |
| YSK-30W-4P | 220/110 | 50/60 | 1160 | 30 |
| YSK-45W-4P | 220/110 | 50/60 | 1250 | 40 |
Features
• Multi base/ mounting solution available
• Custom OEM designs available upon request
• 10W to 40W rated range
• 4P/2P available
• PSC/CSCR/CSIR/SPIR run type available
• External capacitor ; Automatic reset protector device
• IP20 or IP44
• Variety speeds motor available
• Anti-rust treatment for shaft
More information of AC fan motor
What accessories does the AC fan motor consist of
AC fan motors are divided into single-phase and three-phase motors, and single-phase motors are divided into shaded pole motors and capacitor-operated motors. The general structure is: stator, stator winding, stator core, machine base. Rotor, rotor core, rotor winding, shaft and so on.
AC motor is composed of stator and rotor, AC motor is divided into synchronous AC motor and induction motor two. Both types of motors are stator-side windings connected to alternating current to generate a rotating magnetic field, but the rotor winding of synchronous AC motors usually requires the exciter to supply direct current (excitation current); In an induction motor, the rotor windings do not need to be fed current. Permanent Split Capacitor (PSC) motors are the most popular type of single-phase induction motors. We produce many different type of ac fan motors, feel free to send us email.
