Product Details:
|
| Product Name: | AC BLDC Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 1800-3000 | Power: | 1W-5W |
| Voltage: | 12V DC | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | class B 12v brushless dc motor,50hz bldc generator motor,60hz bldc generator motor |
||

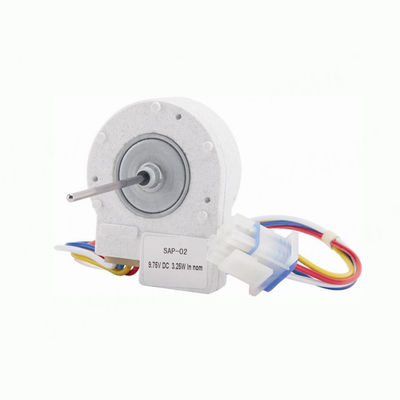

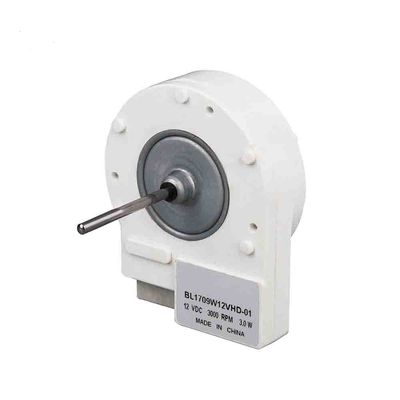

ZW 58 BLDC MOTOR REFRIGERATOR FAN MOTOR PARTS DC 12V MOTOR
Introduction
This is a DC12V BLDC motor apply for freezer or refrigerator, the motor power for typical model are 1-5W. The thickness of the motor body usually is 20mm. Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality AC BLDC motor for refrigerator, heat pump, air conditioning, heating and ventilation.
Specification
Product name: BLDC Motor
| Model | Voltage (VDC) |
Rated Power (W) |
Rated Current (A) |
Rated Speed (RPM) |
| ZW58/05(A) | 9.75~12 | 1.8~3.5 | 0.15~0.45 | 1500~3100 |
| ZW58/05(B) | 9.75~12 | 1.8~3.5 | 0.15~0.45 | 1500~3100 |
Features
Steel packed Compact structure
Variable speed/high efficiency/low noise
Over heat/load/current protection
CCC/CE certification
More information of BLDC motor
Brushless Direct Current (BLDC) motors are a rapidly gaining popularity of motor types that can be used in industries such as household appliances, automotive, aerospace, consumer goods, medical, industrial automation equipment and instrumentation.
As the name indicates, BLDC motors do not use brushes to commutate, but electronically. BLDC motors have many advantages over brushed DC motors and induction motors. These include:
• Better speed-torque characteristics
• Fast dynamic response
•High efficiency
• Long service life
• Operates without noise
• Higher speed range
