500-2200W AC BLDC Motor Brushless EC 380V/220V High Power Variable Speed For Farm Duty Fan

EC 380V/220V High power variable speed 500W-2200W BLDC motor for farm duty fan

Introduction

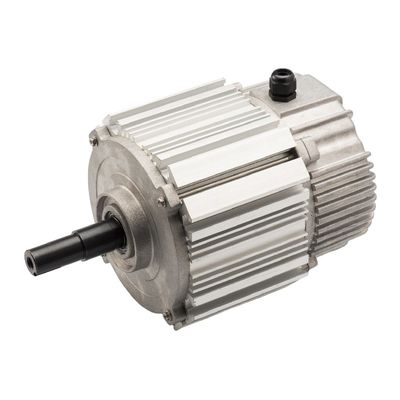

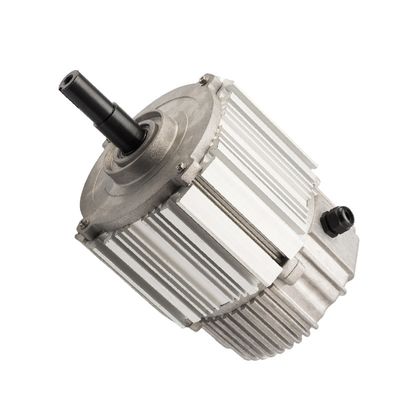

This page shows a high power EC/BLDC fan motor used in fan blower or air conditioner units and similar applications, which need to drive fan blowers.

Till now, Hengsheng has a various of specifications of AC BLDC motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.

Features of BLDC motor

1. Rated Voltage:200-240V 50Hz/60Hz

2. Output power range: 750W-2.2KW

3. Speed 300-1000 adjustable

4. The driver adopts the structure of aluminum shell completely closed, which has high protection level and is safe and reliable.

5. The driver adopts independent installation structure, which is convenient for disassembly and maintenance after sale.

6. The driver is integrated with three-speed, VSP10V,AC24V,PWM/PWF, RS485 control mode, and the function of speed feedback is optional.

7.Using infrared remote control, adjustable constant speed,constant torque, fan coil unit load, cassette fan coil unit load.clockwise or counterclockwise rotation

8.Using the same structure and installation method as the single-phase electric power, it is more convenient to replace and popularize

9.Rated speed 1070 RPM, rated output power 750W, Max Torque 6.5 Nm.

Specification

More information of Brushless DC Motor

A brushless direct current motor (BLDC: Brushless Direct Current Motor), also known as an electronic commutation motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor that uses direct current (DC) power supply. The brushless DC motor is essentially a permanent magnet synchronous motor that adopts DC power input and becomes a three-phase AC power supply with an inverter. There are various types of motors, and brushless DC motors are the most ideal speed control motors today. It integrates the advantages of DC motor and AC motor, not only has the good adjustment performance of DC motor, but also has the advantages of simple structure of AC motor, no commutation spark, reliable operation and easy maintenance. Therefore, it is well received by the market and is widely used in automobiles, home appliances, industrial equipment and other fields.
