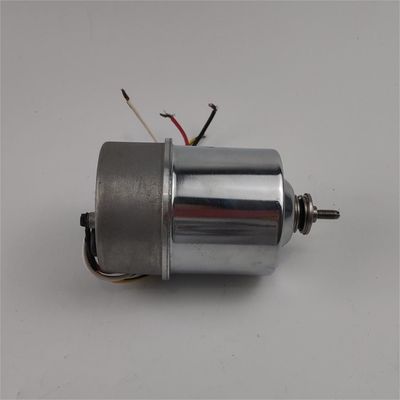

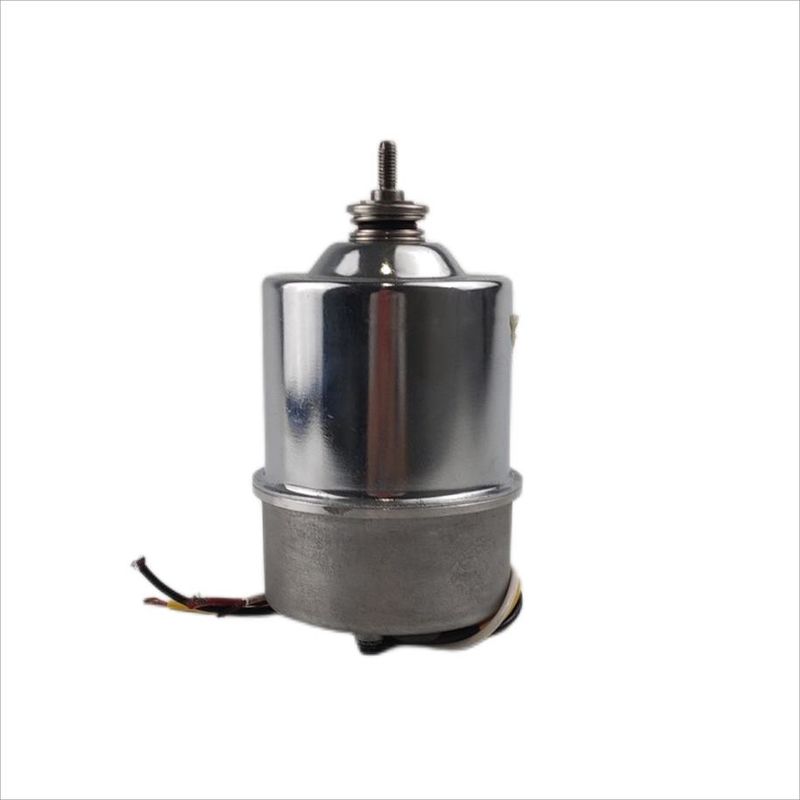

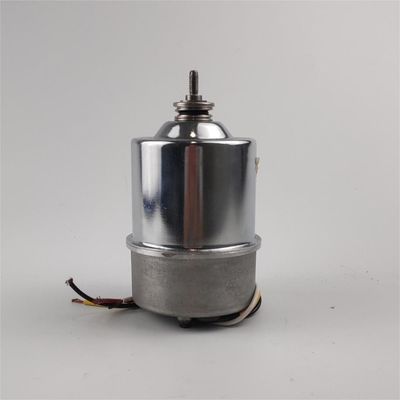

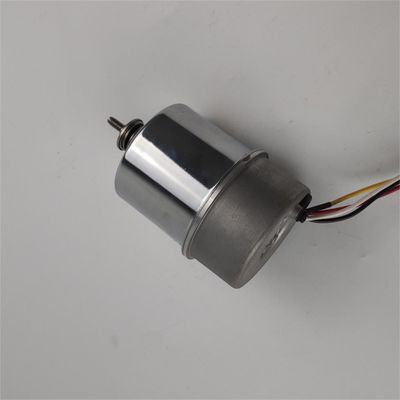

220v 115v Single Phase Submersible Motor 1300rpm Mini For Water Pump

Single phase 220v 115v Water Pump Motor Electric Submersible Motor

Introduction

This is a type of electric motor for submersible water pump motor. It is designed for coffee or soda machine’s condensate pump and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans for agriculture etc. Motors are customized by different requirements and we can sell motors with pump head as solution.

Quick Details

Output Power:100-550W

Type:Electric Water Pump Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B

Specification

AC induction motor features

• Multi base/ mounting solution available

• Custom OEM designs available upon request

• 4P/2P available

• PSC/CSCR/CSIR/SPIR run type available

• External capacitor ; Automatic reset protector device

• IP55 or IP44

• Variety speeds motor available

• Anti-rust treatment for shaft

More information of Electric Water Pump Motor

This page show a electric water pump motor used in submersible pumps.

Submersible pumps work in water, and simple leakage can cause electrical energy loss or even electric shock. If anti-leakage measures such as leakage repairers are installed, the leakage value of the submersible pump exceeds its operating current value, generally not exceeding 30mA, and its power supply will be actively cut off.

If the power supply voltage of the place itself is slightly lower than the voltage required by the sewage pump, when the configuration length of the required cable is relatively long, the running cable of the pump will become larger, and if the electric water pump runs for a long time, it is very unfavorable to the motor of the sewage pump.

The load of submersible water pumps is heavier than that of ordinary pumps, and the rated current of relative supporting facilities is relatively large. Therefore, when selecting the inverter, the motor and the inverter should be selected according to the working conditions of the submersible electric pump, and the choice of the inverter and the motor depends on whether the power is matched on the one hand, and the rated current of the motor and the inverter on the other hand.
