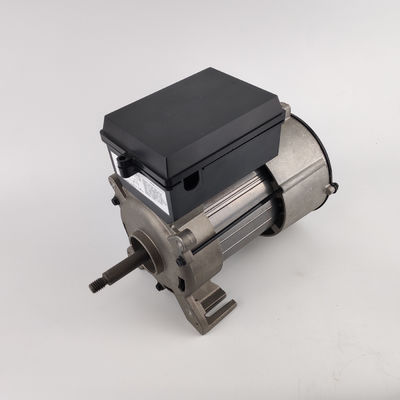

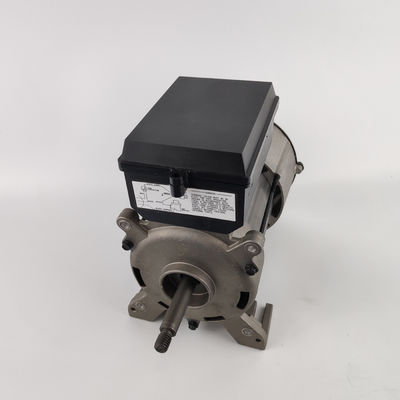

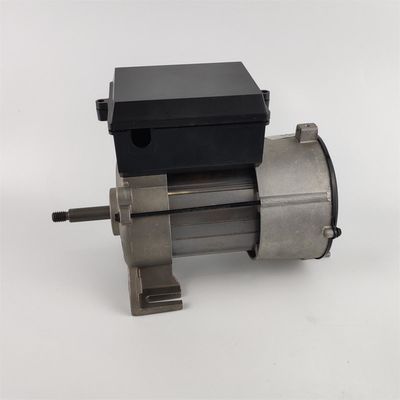

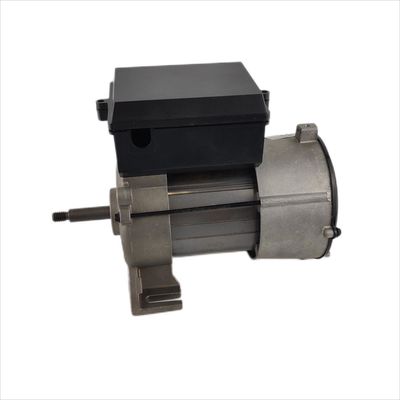

0.75hp Electric Water Pump Motor Single Phase 10 Frame 208-230V For Bathtub Pump

Single phase 208-230V 10 frame 0.75HP electric water pump motor for bathtub

Introduction

This is a type of electric water pump motor. We have a full range of NEMA sub-horsepower motors, covering up to 56 Frame, including 0-5Hp AC induction motors, C-Frame shaded pole motors, etc. AC motor has no carbon brush and commutator, simple structure, maintenance-free and reliable operation; At the same time, the speed is stable, and it is widely used in commercial, household and industrial applications, especially for HVAC, refrigeration, pumps, compressors, ventilation systems, general machinery and other industry equipment, reliable operation and low cost.

Quick Details

Output Power:300W to 1200W

Type:Electric Water Pump Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B

Specification

Features

• Multi base/ mounting solution available

• Custom OEM designs available upon request

• 300W to 1200W rated range

• 4P/2P available

• PSC/CSCR/CSIR/SPIR run type available

• External capacitor ; Automatic reset protector device

• IP20 or IP44

• Anti-rust treatment for shaft

More information of Electric Water Pump Motor

This page show a electric water pump motor used in 90/112 series bathtub pump motor.

Electric water pump motor should be divided into horizontal motor and vertical motor according to the structure classification. Because the working characteristics of the water pump are relatively small starting torque, relatively small starting frequency, and relatively long continuous running time, most of the pump motors are asynchronous motors or synchronous motors with squirrel cage rotors.

The selection of the electric water pump motor is selected according to the shaft power; The motor power is greater than the shaft power by one grade; For example: the shaft power is 15KW, the choice of motor should be: 18.5KW As for the use of several pole motors, it should be based on the actual working conditions. 2-pole motors are generally used when the head is slightly high and the flow rate is not large (the calculation is more complicated). 4-pole motor can be selected for occasions with large flow and small head. Ultra-large flow, lower head choose 4 or 6 pole motor, when choosing a 6-pole motor, the power can be reduced by one level according to the shaft power.
