Product Details:
|
| Product Name: | 3 Phase Industrial Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 600-1000 | Power: | 30-1750W |
| Voltage: | 380V/440-460V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 50hz 3 Phase Industrial Motor,60hz 3 Phase Industrial Motor,440v 3 Phase Industrial Motor |
||

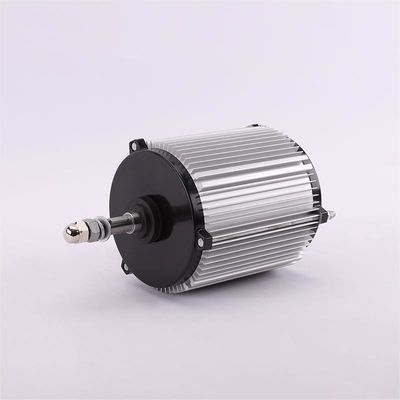

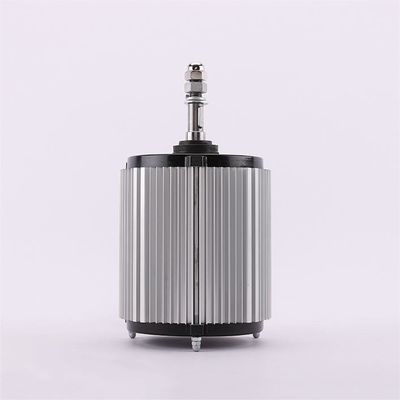

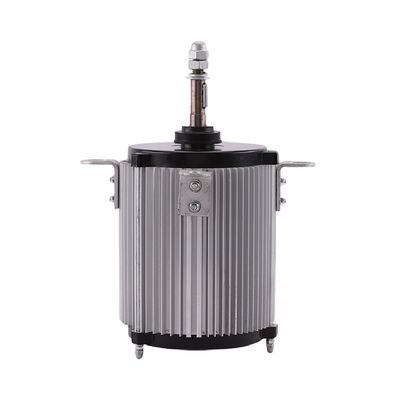

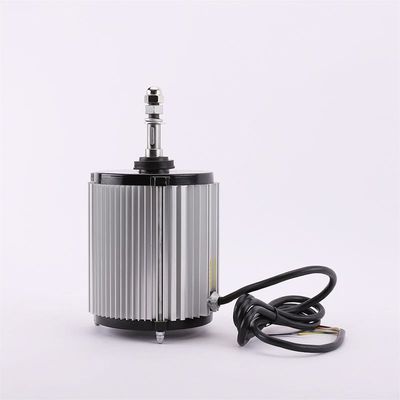

380V-440V 50/60HZ 3 Phase Industrial Motor For Air Conditioning Axial Fan Blower
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality 3 phase industrial motor for animal husbandry, heat pump, farm, axial fans and other big fans for special applications.This 3 phase industrial motor is for big axial fans and similar application. We can also sell motors with fans as solution.
Quick Details
Output Power:370-3000W
Type: 3 phase industrial motor
Frequency:50/60hz
Phase:Single-phase/ 3 Phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V/380V
Insulation:Class B
Specification
| Model | V/Hz | Current(A) | Input Power(W) | Speed(rpm) |
| YLS-750W-6P | 380V/50Hz | 2.3 | ≤1000 | 940 |
| YLS-900W-8P | 380V/50Hz | 3 | ≤1200 | 720 |
| YLS-1100W-6P | 380V/50Hz | 3.2 | ≤1400 | 940 |
| YLS-1300W-8P | 380V/50Hz | 3.8 | ≤1650 | 720 |
| YLS-1500W-6P | 380V/50Hz | 4.2 | ≤1950 | 940 |
| YLS-1800W-6P | 380V/50Hz | 4.5 | ≤2300 | 940 |
| YLS-1800W-8P | 380V/50Hz | 4. 8 | ≤2350 | 720 |
| YLS-2200W-6P | 380V/50Hz | 5.6 | ≤2700 | 940 |
| YLS-2500W-6P | 380V/50Hz | 6.5 | ≤3100 | 940 |
| YLS-2800W-6P | 380V/50Hz | 6.5 | ≤3400 | 940 |
| YLS-3000W-6P | 380V/50Hz | 7.6 | ≤3700 | 940 |
Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
More information of 3 Phase Industrial Motor
There are three types of electric braking methods for three-phase industrial induction motors: energy consumption braking, reverse braking and regenerative braking. Induction motor, also known as "asynchronous motor", that is, the rotor is placed in the rotating magnetic field, and under the action of the rotating magnetic field, a rotating torque is obtained, so the rotor rotates.
The appearance and internal structure of the three-phase industrial induction motor. Rotors are rotating conductors, usually in the shape of a squirrel cage. The stator is the part of the motor that does not rotate, and the main task is to generate a rotating magnetic field. Rotating magnetic fields are not implemented mechanically. Instead, alternating current is passed through several pairs of electromagnets, causing the magnetic pole properties to change cyclically, so it is equivalent to a rotating magnetic field. This kind of motor is not like DC motor has brushes or collector rings, according to the type of alternating current used, there are single-phase motors and 3 phase industrial motors, single-phase motors are used in such as washing machines, electric fans, etc.; The three-phase motor is used as the power equipment of the plant.
