Product Details:
|
| Product Name: | 3 Phase Industrial Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 600-1000 | Power: | 30-1750W |
| Voltage: | 380V/440-460V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 3000w 3 Phase Industrial Motor,380V synchronous gear motor,440V synchronous gear motor |
||

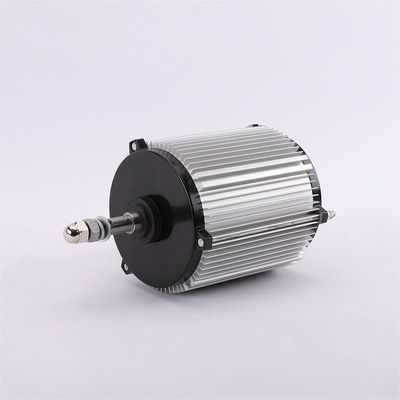

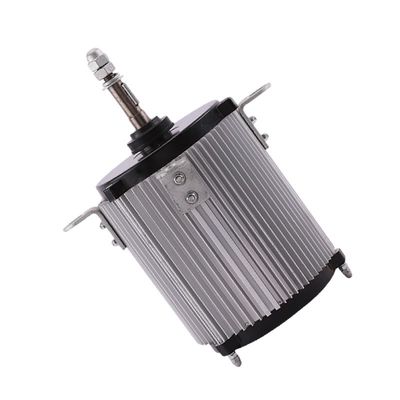

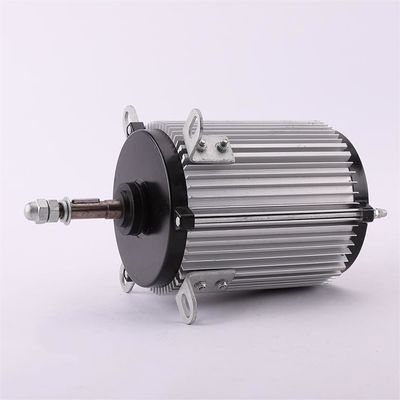

YLS 380V-440V Asynchronous Industrial Motor 3000W For Cooling Equipment
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality 3 phase industrial motor for animal husbandry, heat pump, farm, axial fans and other big fans for special applications.This 3 phase industrial motor is for big axial fans and similar application. We can also sell motors with fans as solution.
Quick Details
Output Power:370-3000W
Type: 3 phase industrial motor
Frequency:50/60hz
Phase:Single-phase/ 3 Phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V/380V
Insulation:Class B
Specification
| Model | V/Hz | Current(A) | Input Power(W) | Speed(rpm) |
| YLS-750W-6P | 380V/50Hz | 2.3 | ≤1000 | 940 |
| YLS-900W-8P | 380V/50Hz | 3 | ≤1200 | 720 |
| YLS-1100W-6P | 380V/50Hz | 3.2 | ≤1400 | 940 |
| YLS-1300W-8P | 380V/50Hz | 3.8 | ≤1650 | 720 |
| YLS-1500W-6P | 380V/50Hz | 4.2 | ≤1950 | 940 |
| YLS-1800W-6P | 380V/50Hz | 4.5 | ≤2300 | 940 |
| YLS-1800W-8P | 380V/50Hz | 4. 8 | ≤2350 | 720 |
| YLS-2200W-6P | 380V/50Hz | 5.6 | ≤2700 | 940 |
| YLS-2500W-6P | 380V/50Hz | 6.5 | ≤3100 | 940 |
| YLS-2800W-6P | 380V/50Hz | 6.5 | ≤3400 | 940 |
| YLS-3000W-6P | 380V/50Hz | 7.6 | ≤3700 | 940 |
Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
More information of 3 Phase Industrial Motor
Three-phase industrial asynchronous motor is also known as three-phase induction motor. Asynchronous motors that require three-phase power supply. When the three-phase current passes through the stator winding, a rotating magnetic field is generated, an induced current is generated in the rotor winding, and the magnetic field and current act on each other to generate electromagnetic torque to make the motor rotate. According to the different rotor windings, there are two types: squirrel cage type and winding type.
Three-phase industrial asynchronous motor has the advantages of simple structure, low price, ruggedness, easy manufacturing, use and maintenance, and it also has high efficiency and load characteristics close to constant speed, so it can meet the drag requirements of most industrial and agricultural production machinery. Therefore, it is a motor with the largest output and the most widely used in all types of applications. According to statistics, more than 80% of the total motor use in the country is 3 phase industrial asynchronous motor, which shows its importance and influence. The disadvantages of three-phase industrial asynchronous motors are low power factor and poor speed regulation performance, but due to the rapid development of AC electronic speed regulation technology, its speed regulation performance has also made great progress, which will further expand its application range.
