Product Details:
|
| Product Namer: | Centrifugal Blower Fan | Power: | 35W |
|---|---|---|---|
| Speed: | 2000rpm | Blade Material: | Galvanized Plate |
| Air Volume: | 200 M³/h | Noise: | 35-64dB(A) |
| Voltage: | 220VAC | IP: | 20/44 |
| Highlight: | 140mm Centrifugal Blower Fan,220vac Centrifugal Blower Fan,single phase wood stove combustion fan |
||

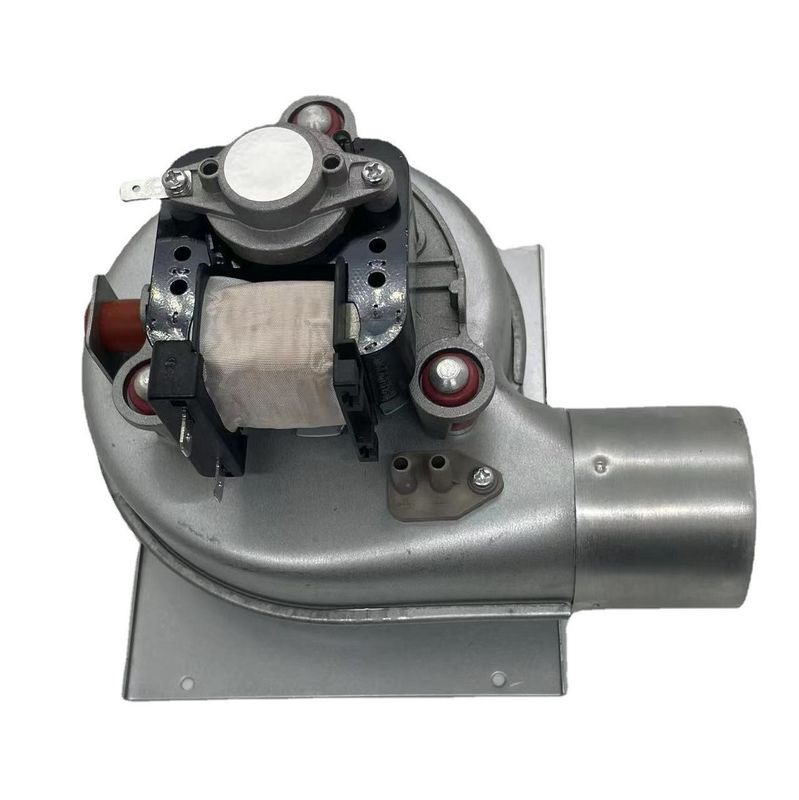

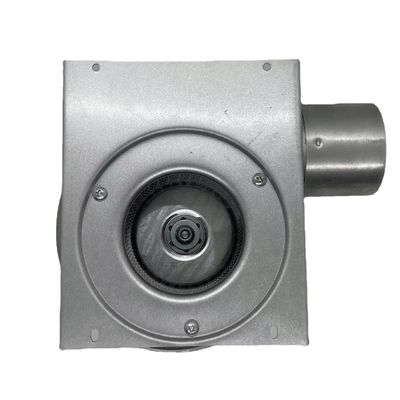

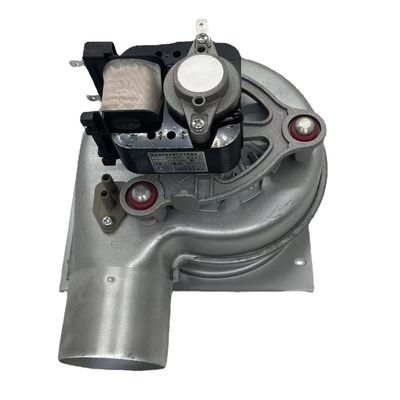

Single Phase 140 Air Flow Centrifugal Blower Fan used for Hanging Gas Heater stove
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialize in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.
Quick Details
Type:Centrifugal Blower Fan
Electric Current Type:AC/DC/EC
Blade Material:aluminum
Voltage:110/120/220/230/12/24
Air Volume:100-500 m³/h
Speed:customization available
Certification:CCC, CE, UL
Fan casing material:galvanized steel
Bearing:Ball Bearing /sleeve bearing
motor type:AC motor / BLDC motor
Application:Oven , heater , air purifier , home appliances , floor heating, gas blower
AC Centrifugal Blower Fan Features
Insulation class H
Flue temperature: ≤180℃(continuous)
≤240℃(instantaneous)
Motor anti-vibration mounted
Housing & impeller: aluminized sheet steel
Mounting position must be specified for
corresponding support elements
Specification
| Model | Voltage | Frequency | Input power | Current | Speed | Air Volume | Pressure |
| (V) | (Hz) | (W) | (A) | (RPM) | (m3/h) | (Pa) | |
| FL097034Y-03 | 220 | 50 | 35 | 0.29 | 2170 | 100 | 205 |
| FL097042Y-03D | 220 | 50 | 35 | 0.3 | 2000 | 108 | 230 |
| FL097034Y- 03BH |
220 | 50 | 35 | 0.3 | 1850 | 100 | 200 |
| FL108042Y-18 | 230 | 50 | 53 | 0.5 | 2250 | 144 | 295 |
| FL108042Y-19 | 230 | 50 | 65 | 0.65 | 2500 | 155 | 305 |
Centrifugal Blower Fan Application
As a fluid machine, centrifugal blower fans have been widely used in various industries.
1. Centrifugal blower fan is a machine that relies on the input mechanical energy to increase the gas pressure and discharge the gas, which is a driven fluid machinery.
2. Centrifugal blower fans are widely used in ventilation, dust exhaust and cooling of factories, mines, tunnels, cooling towers, vehicles, ships and buildings.
3. Ventilation and induced air of boilers and industrial furnaces.
4. Cooling and ventilation in air conditioning equipment and household appliance equipment.
5. Drying and selection of grains in agriculture industry.
6. Inflatation and propulsion of wind tunnel wind sources and hovercraft, etc.
