Product Details:
|
| Product Namer: | Centrifugal Blower Fan | Power: | 35W |
|---|---|---|---|
| Speed: | 2000rpm | Blade Material: | Galvanized Plate |
| Air Volume: | 200 M³/h | Noise: | 35-64dB(A) |
| Voltage: | 220VAC | IP: | 20/44 |
| Highlight: | 2000rpm centrifugal duct fan,wall hung boiler blower fan,single phase boiler blower fan |
||

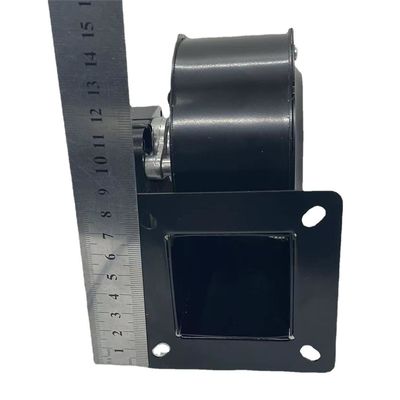

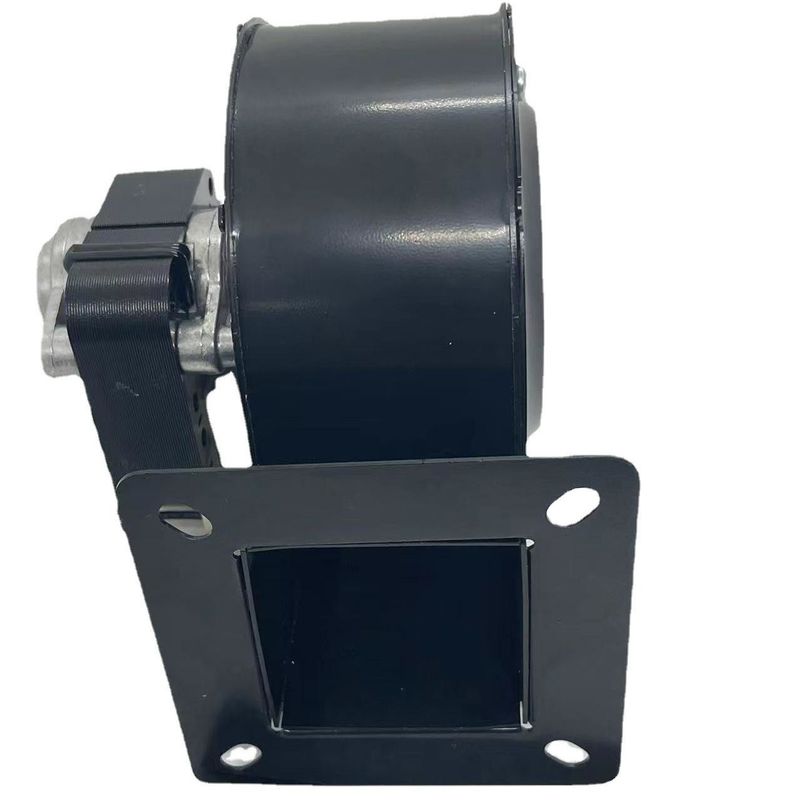

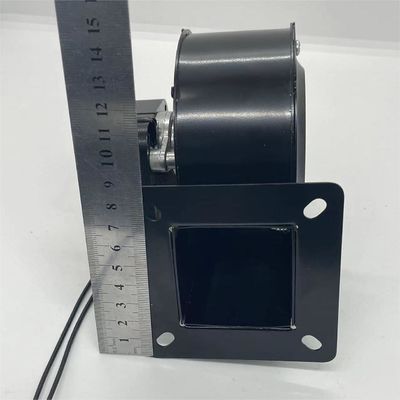

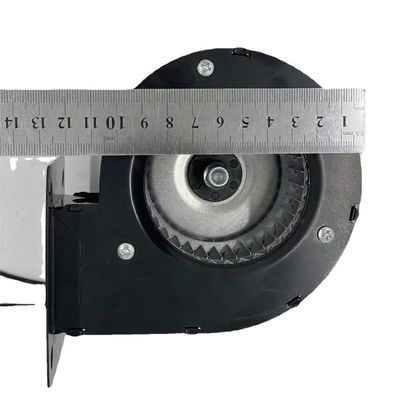

Single phase Metal Centrifugal Blower Fan for Wall-Hung Boiler
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialize in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.
Quick Details
Type:Centrifugal Blower Fan
Electric Current Type:AC/DC/EC
Blade Material:aluminum
Voltage:110/120/220/230/12/24
Air Volume:100-500 m³/h
Speed:customization available
Certification:CCC, CE, UL
Fan casing material:galvanized steel
Bearing:Ball Bearing /sleeve bearing
motor type:AC motor / BLDC motor
Application:Oven , heater , air purifier , home appliances , floor heating, gas blower
AC Centrifugal Blower Fan Features
Insulation class H
Flue temperature: ≤180℃(continuous)
≤240℃(instantaneous)
Motor anti-vibration mounted
Housing & impeller: aluminized sheet steel
Mounting position must be specified for
corresponding support elements
Specification
| Model | Voltage | Frequency | Input power | Current | Speed | Air Volume | Pressure |
| (V) | (Hz) | (W) | (A) | (RPM) | (m3/h) | (Pa) | |
| FL097034Y-03 | 220 | 50 | 35 | 0.29 | 2170 | 100 | 205 |
| FL097042Y-03D | 220 | 50 | 35 | 0.3 | 2000 | 108 | 230 |
| FL097034Y- 03BH |
220 | 50 | 35 | 0.3 | 1850 | 100 | 200 |
| FL108042Y-18 | 230 | 50 | 53 | 0.5 | 2250 | 144 | 295 |
| FL108042Y-19 | 230 | 50 | 65 | 0.65 | 2500 | 155 | 305 |
Centrifugal Blower Fan Application
From the perspective of the structure of the centrifugal blower fan, there is no particularly complex principle, mainly under the action of mechanical energy, the gas pressure in the body is increased, and then the purpose of gas discharge is achieved. As a fluid machine, centrifugal blower fans have been widely used in various industries.
In the factory workshops, the role of centrifugal blower fan ventilation is particularly important, and the improvement of the working environment further ensures the health of the staff. In warehouses, the role of centrifugal fans is to ensure that the air is dry and that industrial products are not attacked by moisture in the air.
In mines and tunnels, the importance of centrifugal blower fans is irreplaceable, which promotes air circulation and dust emissions, and ensures the efficient operation of mines. Ships, construction and automobiles are also potential markets for centrifugal fans, and the configuration of centrifugal fans improves the environmental indicators of vehicles, buildings, and ships, which can not be ignored to improve the added value of this type of products.
