360w Single Phase AC Induction Motor 50hz 60hz For Oxygen Generator Compressor

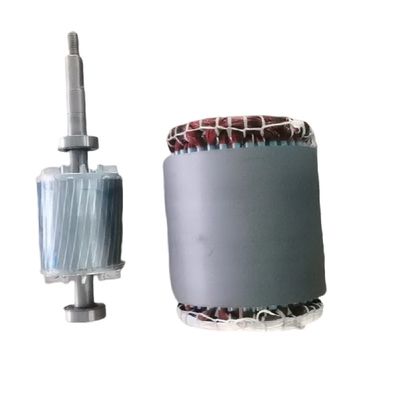

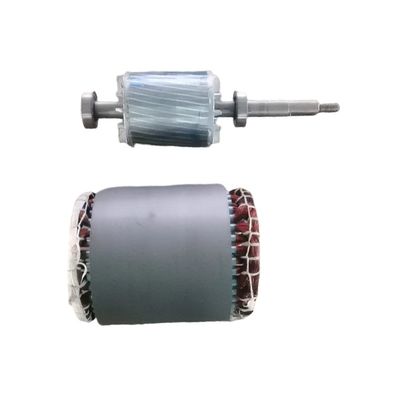

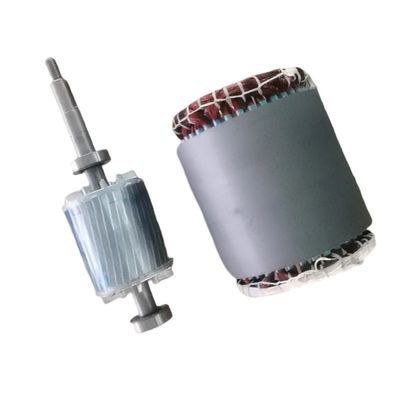

Single phase 360W AC Induction Motor for Oxygen generator compressor

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting ac fan motor, motor driver, BLDC motor and PM motor for several years. We have our own production base and a strong R&D team. This is a single phase capacitor run AC motor for centrifugal fan blower. Power range from 50-550W, speed 500-1500RPM.

Quick Details

Output Power:100-550W

Type: Single Phase AC Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B/F

Features:

• Reversible plug for easy rotation

• Class E/F/H Insulation

• Quick installation

• Energy efficient

• Quiet operation

• Ball bearing

• Dual voltage 115/208-230 voltage

• Diameter: Steel cover144mm

• Automatic overload

• Operating temp -10-43 degree

• Number of Pole: 6/8Pole

• Shaft size:15mm

• Speed: 825-1075rpm

• Thermal protection

• High efficiency,High reliability,Little vibration,Low noise

Specification

Learn more about Single Phase AC Induction Motor

The main two types of AC induction motors

1. AC motors can be mainly divided into AC single-phase motors and AC three-phase motors.

2. AC single-phase induction motor generally refers to a low-power single-phase asynchronous motor powered by single-phase AC power supply (AC220V). This kind of motor usually has a two-phase winding on the stator, and the rotor is an ordinary squirrel cage type.

The distribution of the two-phase windings on the stator and the different power supply conditions can produce different starting characteristics and operating characteristics.

(1) AC single-phase induction motor refers to an asynchronous motor that is powered by a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and family life electricity is also 220V, so AC single-phase motor not only uses a large amount of production, but also closely related to people's daily life, especially with the increasing improvement of people's living standards, the amount of single-phase induction motors for household appliances and equipment is also increasing.

(2) In terms of production, there are micro water pumps, refiners, threshers, crushers, woodworking machinery, medical equipment cities, etc. In terms of life, there are electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc., there are many types, but the power is small.
