Product Details:
|
| Name: | Single Phase AC Induction Motor | Voltage: | 110-115V/208-230V |
|---|---|---|---|
| Phase: | Single Phase | Application: | Dryer Machine |
| Power: | 60-200W | Speed: | 3000rpm |
| Frequency: | 50/60hz | Insulation: | Class B |
| Highlight: | 230v small single phase ac motor,120w dryer machine motor,200w dryer machine motor |
||

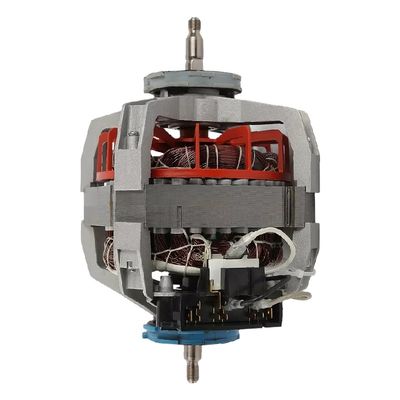

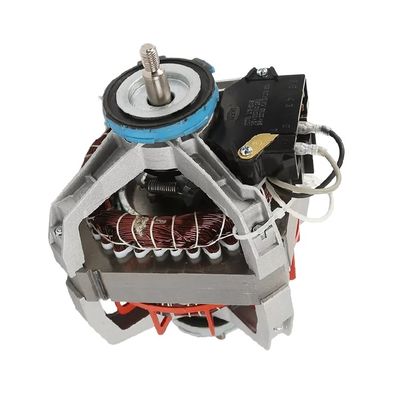

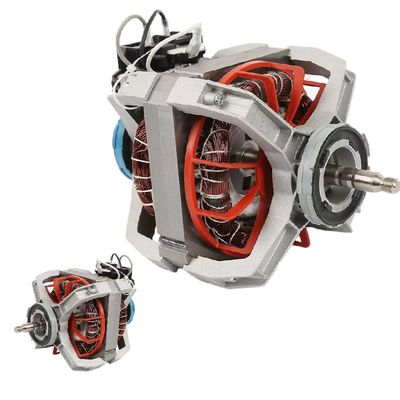

Introduction
Electric induction AC motors used for washing dryer machines. Power Range from 100W-300w, and the voltage can choose 110-120v or 220-230V, frequency 50/60Hz. Motors can customize by different requirements.
Quick Details
Product name: AC induction motors for dryer machine
Output Power:100-300W
Type: Induction Motor
Frequency:50/60hz
Phase:Single-phase
Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA
Protect Feature:Totally Enclosed
Voltage:115/120 V/208-230V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YFK-11001304 | 220 | 50 | 1100 | 130 |
| YFK-11001004 | 115 | 60 | 1350 | 100 |
| YFK-11002604 | 220 | 50 | 1270 | 260 |
| YFK-11004504 | 230 | 60 | 1350 | 450 |
Applications
The induction motor is an AC motor, in which the torque generated by the current in the rotor is required to obtain electromagnetic induction from the stator winding of the magnetic field through the following steps. Therefore, the induction motor can be manufactured without electrical connection with the rotor. The rotor of induction motor can be wound or squirrel cage type. AC induction motor are widely used in all types of household machines like washing machine, air conditioner, dryer machine, Air purifier, Air blower,Ventilation fans
