Product Details:
|
| Product Name: | AC BLDC MOTOR | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Power: | 100-750W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 100W BLDC pump motor,750W BLDC pump motor,220v single phase brushless motor |
||

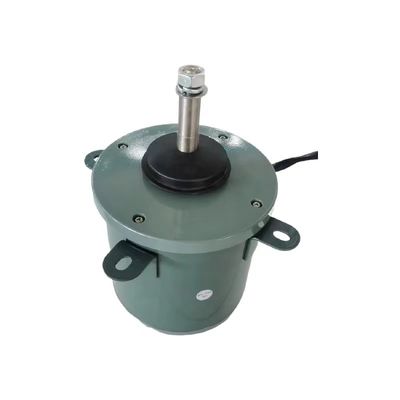

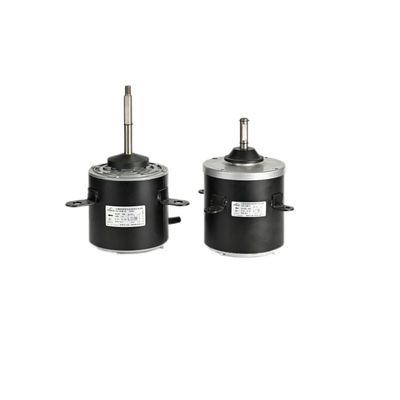

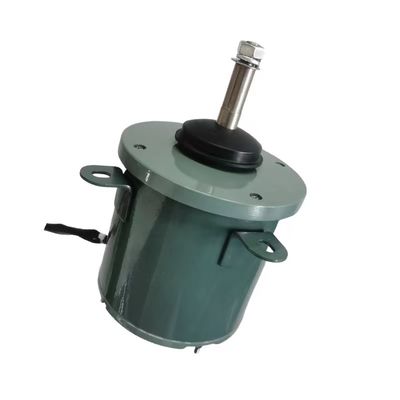

220V Single Phase 100W-750W AC BLDC Motor For Commercial Heat Pump
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality AC BLDC motor for heat pump, air conditioning, heating and ventilation.This Single phase 100W-750W AC BLDC Motor for commercial heat pump is customized by customer for heat pump outdoor unit. We can also sell motors with fans as solution.
Quick Details
Output Power:100-300W
Type: AC BLDC Motor
Frequency:50/60hz
Phase:Single-phase/Three phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V
Insulation:Class B/H
Features:
Reversible plug for easy rotation; Quick installation; Quiet operation;
Ball bearing; Dual voltage 115/208-230 v
Run capacitor pre-mounted on motor; Automatic overload; Operating temp -10-43 degree
High efficiency,High reliability,Little vibration,Low noise Thermal protection
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-100W-4/6P | 220/110 | 50/60 | 500-1000 | 100 |
| YDK-300W-4/6P | 220/110 | 50/60 | 800-1100 | 300 |
| YDK-500W-4/6P | 220/110 | 50/60 | 500-1000 | 500 |
| YDK-750W-4/6P | 220/110 | 50/60 | 500-920 | 750 |
More information
Structure of heat dissipation motor of air energy heat pump:
The heat dissipation motor of air energy heat pump is composed of stator, rotor and other accessories. The specific components of different types of air energy heat pump cooling AC/BLDC motors will be slightly different. Permanent magnet DC motor is composed of stator magnetic pole, rotor, brush, shell, etc. The stator magnetic pole is made of permanent magnet, ferrite, aluminum nickel cobalt, iron boron and other materials. BLDC motor is composed of permanent magnet rotor, multipole winding stator, position sensor, etc. Single phase asynchronous AC motor consists of stator, rotor, bearing, casing, end cover, etc. If you are interested in our AC BLDC motor, please feel free to send us the inquiry.
