Product Details:
|
| Product Name: | AC BLDC Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-2300 | Power: | 10W-50W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | brushless asynchronous motor 10w,brushless asynchronous motor 100w,50hz single phase asynchronous motor |
||
Introduction

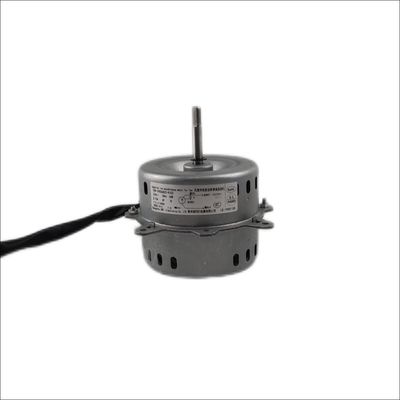

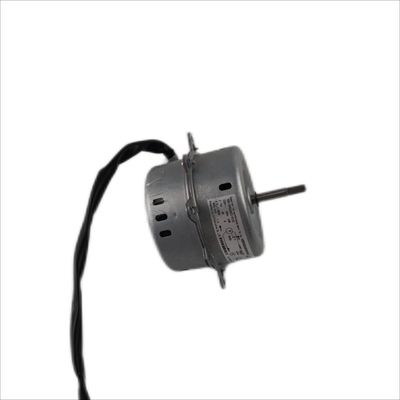

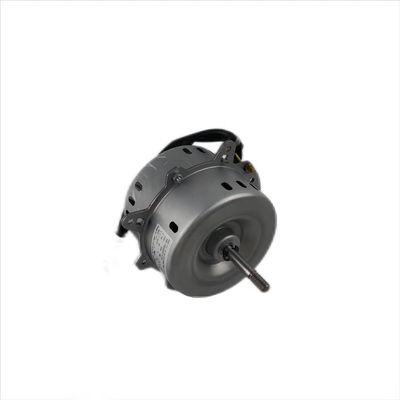

Till now, Hengsheng has a various of specifications of AC BLDC motors, this page listed a open frame AC motor which used in dehumidifier, we also have an option of BLDC motor as equivalence product . Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008 for AC BLDC motors.
Quick Details
Product name AC BLDC motor
Rated Voltage:220V 50Hz/60Hz
Output power range: 10W-50W
IP level:IP20/IP44
High quality ball bearing with low noisy and long operating life
Insulation class:B/F
Automatic thermal cutoff
Suitable for application of portable air conditioner, dehumidifier, air conditioner fan, air cooler,air blower, etc.
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-10-4P | 115/220V | 50/60 | 500-1150 | 10W |
| YDK-20-4P | 115/220 | 50/60 | 500-1150 | 20W |
| YDK-30-4P | 115/220 | 50/60 | 500-1150 | 30W |
| YDK-50-4P | 115/220 | 50/60 | 600-1350 | 50W |
Feature
High efficiency
Low noise
Cooper wire
Automatic thermal cutoff
Application
Modern household appliances are installed with electric devices everywhere. Currently, the BLDC motor plays an important role in these household appliances. In particular, it is very helpful for household appliances to adopt the BLDC motor to ensure the use process of kitchen electric devices to be visible and effective. Our AC and BLDC motors are widely used in different type of household appliances, if you have any inquiry please feel free to send us.
