Product Details:
|
| Name: | Single Phase AC Induction Motor | Voltage: | 110-115V/208-230V |
|---|---|---|---|
| Phase: | Single Phase | Application: | High Pressure Washer |
| Power: | 500-1500W | Speed: | 3000rpm |
| Frequency: | 50/60hz | Insulation: | Class B |
| Highlight: | 110v 3 phase induction motor,220v 3 phase induction motor,ac induction motor single phase 3400rpm |
||
Introduction

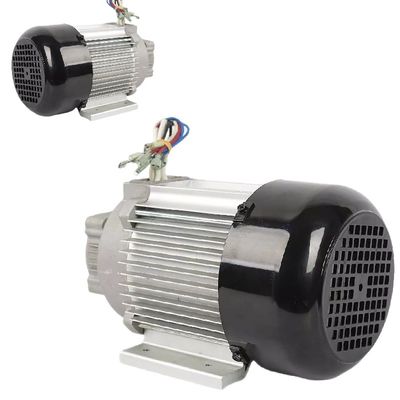

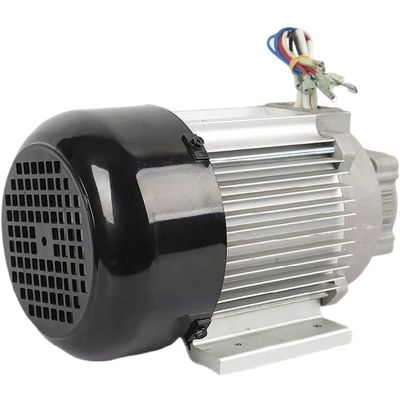

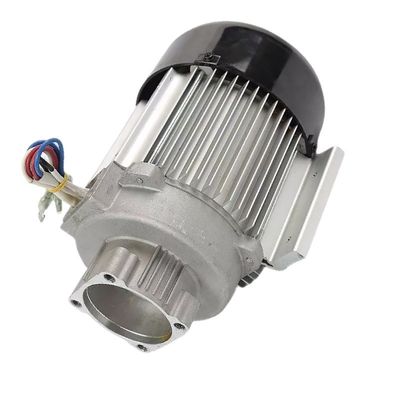

This page shows a single phase AC induction motor which used for pressure washer machines. It is 1300w 230v 60hz, the parameter can be redesign base on different customer requirements. Please contact our sales department if you need assistance selecting the appropriate AC induction motor for your application.
Essential details
Type:Single Phase AC Induction Motor Induction Motor
Warranty:1 year
Place of Origin:Jiangsu, China
Frequency:60Hz
Phase:Three-phase/single phase
Protect Feature:Waterproof
AC Voltage:110V
Efficiency:IE 2
Voltage(V):110V/220V
Rated output power:1300w
Insulation class:B
Rated speed:3400r/min
Torque:3.6 N.m
Products Description
| Item No. | Voltage(V) | Frequency(Hz) | Rated speed(r/min) | W | Insulation Class |
| YY11A50EC | 230 | 50/60 | 2830 | 320 | B |
| YY11A65EC | 230 | 50/60 | 2830 | 610 | B |
| YY11A75EC | 230 | 50/60 | 2830 | 730 | B |
| YY11A80EC | 230 | 50/60 | 2830 | 690 | B |
| YY11A105 | 230 | 50/60 | 2830 | 920 | B |
| YY11A110 | 230 | 50/60 | 2830 | 1050 | B |
Application
The ac induction motor is by far the most widely used motor in the industry. Traditionally, it has been used in constant and variable-speed drive applications that do not cater for fast dynamic processes. We offer broad ranges of AC Induction Motor products with greater strength, longer life for various application. Our AC induction motors meet all requirements of specific application in several different sizes and torque ranges.
Our service
Q:How to make the order?
a,Communicate with our sales person
b,Send us the drawing or sample
c, Send you the sample
d, Order for us after samples approved
Q:Quality Control & Technology
a,100% testing before packing
b, Spot inspection before delivery
c, Accept Customized product
