Product Details:
|
| Product Namer: | Centrifugal Blower Fan | Power: | 70-750W |
|---|---|---|---|
| Speed: | 500-2000rpm | Blade Material: | Galvanized Plate |
| Air Volume: | 400-4500 M³/h | Noise: | 35-50dB(A) |
| Voltage: | 115/208-230V/24V/48V | IP: | 20/44 |
| Highlight: | 4000 cfm single phase blower,70w three phase blower,750w three phase blower |
||

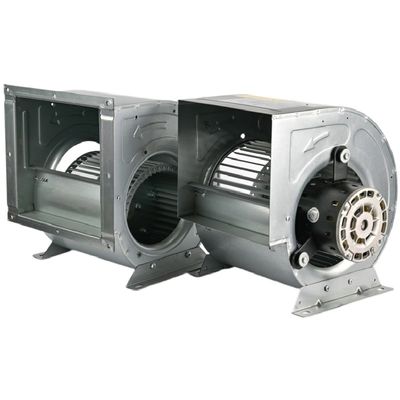

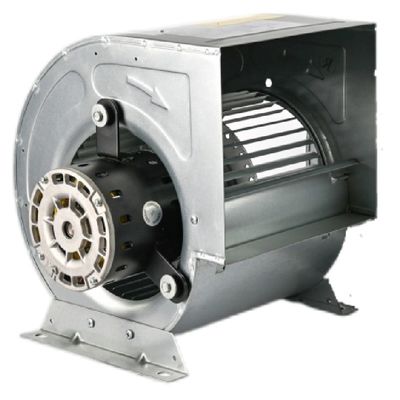

Single/Three Phase 4000 Air Flow Centrifugal Blower Fan used for Greenhouse/Fresh Air
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialize in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.
Quick Details
Type:Centrifugal Blower Fan
Electric Current Type:AC/DC/EC
Blade Material:aluminum
Voltage:110/120/220/230/12/24
Air Volume:300-4400 m³/h
Speed:customization available
Certification:CCC, CE, UL
Fan casing material:galvanized steel
Bearing:Ball Bearing /sleeve bearing

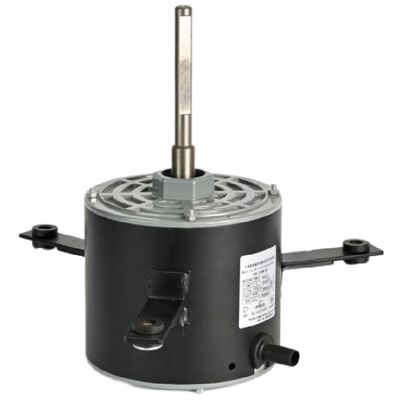

motor type:AC motor / BLDC motor
Application:Oven , heater , air purifier , home appliances , floor heating
AC Centrifugal Blower Fan Features
1. Output power range: 70W-750W
2. Fans speed 300-1500 adjustable
3. IP level:IP20/P43
Specification
| Fan Model | Motor Type | Vol/Fre (V/Hz) |
Output (W) |
Static Pressure (Pa) |
Air flow (m/h) |
| SYZ 7-5 | YDK-70W-6P | 220V/50Hz | 70 | 0-125 | 200-1015 |
| YDK-120W-4P | 220V/50Hz | 120 | 0-270 | 320-1250 | |
| SYZ7-7 | YDK-90W-6P | 220V/50Hz | 90 | 0-130 | 490-1500 |
| YDK-180W-4P | 220V/50Hz | 180 | 0-265 | 1030-1850 | |
| SYZ 8-8 | YDK-200W-6P | 220V/50Hz | 200 | 0-170 | 880-2300 |
| YDK-300W-4P | 220V/50Hz | 300 | 0-380 | 1015-2500 | |
| SYZ 9-7 | YDK-375W-6P | 220V/50Hz | 375 | 40-230 | 700-2900 |
| YDK-375W-4P | 220V/50Hz | 375 | 100-450 | 670-2350 | |
| SYZ 9-9 | YDK-375W-6P | 220V/50Hz | 375 | 90-230 | 665-3065 |
| YDK-450W-4P | 220V/50Hz | 450 | 240-480 | 715-2875 | |
| SYZ 10-8 | YDK-375W-6P | 220V/50Hz | 375 | 100-240 | 1000-3000 |
| YDK-550W-4P | 220V/50Hz | 550 | 360-500 | 1500-2800 | |
| SYZ 10-10 | YDK-450W-6P | 220V/50Hz | 450 | 150-230 | 540-3550 |
| YDK-550W-4P | 220V/50Hz | 550 | 230-410 | 2050-3400 | |
| SYZ 12-9 | YDK-750W-6P | 220V/50Hz | 750 | 200-360 | 1560-4650 |
| SYZ 12-12 | YDK-750W-6P | 220V/50Hz | 750 | 300-350 | 1560-4400 |
Centrifugal Blower Fan Application
Ventilation and induced air ventilation, cooling, dust exhaust.
In the factory, workshops, warehouses and other departments are equipped with centrifugal fans, which play the role of ventilation, ensure fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.
