Product Details:
|
| Product Namer: | Centrifugal Blower Fan | Power: | 70-750W |
|---|---|---|---|
| Speed: | 500-2000rpm | Blade Material: | Galvanized Plate |
| Air Volume: | 400-4500 M³/h | Noise: | 35-50dB(A) |
| Voltage: | 115/208-230V/24V/48V | IP: | 20/44 |
| Highlight: | 3000cfm Centrifugal Blower Fan,BLDC centrifugal type blower,EC centrifugal type blower |
||

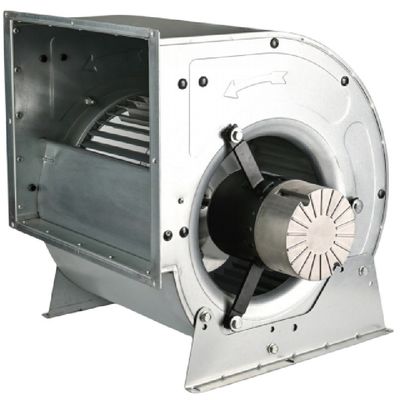

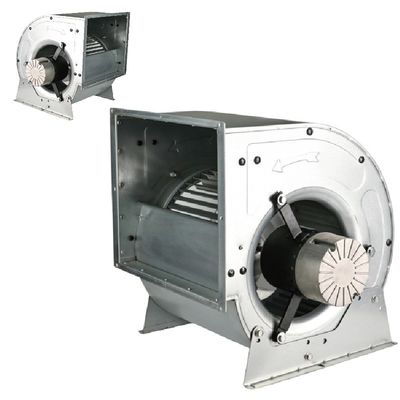

Single/Three Phase 3000 Air Flow EC BLDC Centrifugal Blower Fan used for ventilation Air Conditioning
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialize in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.
Quick Details
Type:Centrifugal Blower Fan
Electric Current Type:AC/DC/EC
Blade Material:aluminum
Voltage:110/120/220/230/12/24
Air Volume:300-4400 m³/h
Speed:customization available
Certification:CCC, CE, UL
Fan casing material:galvanized steel
Bearing:Ball Bearing /sleeve bearing

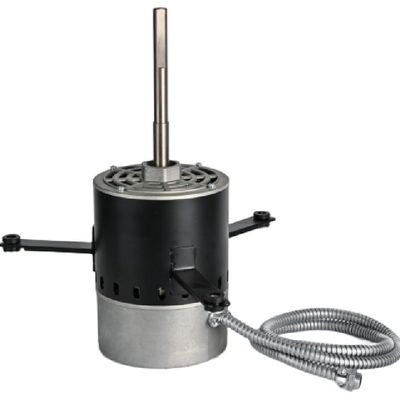

motor type:AC motor / BLDC motor
Application:Oven , heater , air purifier , home appliances , floor heating
AC Centrifugal Blower Fan Features
1. Output power range: 70W-750W
2. Fans speed 300-1500 adjustable
3. IP level:IP20/P43
Specification
| Fan Model | Motor Type | Vol/Fre (V/Hz) |
Output (W) |
Static Pressure (Pa) |
Air flow (m³/h) |
Control Mode |
| SYZ 7-5 | BLDK-80W-8P | 220V/50Hz | 70 | 0-125 | 200-1015 | 3 speed/ 0-10V/ AC24V/ PWM/PWF, RS485 |
| BLDK-120W-8P | 220V/50Hz | 120 | 0-270 | 320-1250 | ||
| SYZ 7-7 | BLDK-120W-8P | 220V/50Hz | 90 | 0-130 | 490-1500 | |
| BLDK-200W-8P | 220V/50Hz | 180 | 0-265 | 1030-1850 | ||
| SYZ 8-8 | BLDK-200W-8P | 220V/50Hz | 200 | 0-170 | 880-2300 | |
| BLDK-750W-8P | 220V/50Hz | 300 | 0-380 | 1015-2500 | ||
| SYZ 9-7 | BLDK-750W-8P | 220V/50Hz | 375 | 40-230 | 700-2900 | |
| BLDK-750W-8P | 220V/50Hz | 375 | 100-450 | 670-2350 | ||
| SYZ 9-9 | BLDK-750W-8P | 220V/50Hz | 375 | 90-230 | 665-3065 | |
| BLDK-750W-8P | 220V/50Hz | 450 | 240-480 | 715-2875 | ||
| SYZ 10-8 | BLDK-750W-8P | 220V/50Hz | 375 | 100-240 | 1000-3000 | |
| BLDK-750W-8P | 220V/50Hz | 550 | 360-500 | 1500-2800 | ||
| SYZ 10-10 | BLDK-750W-8P | 220V/50Hz | 450 | 150-230 | 540-3550 | |
| BLDK-750W-8P | 220V/50Hz | 550 | 230-410 | 2050-3400 | ||
| SYZ 12-9 | BLDK-750W-8P | 220V/50Hz | 750 | 200-360 | 1560-4650 | |
| SYZ 12-12 | BLDK-750W-8P | 220V/50Hz | 750 | 300-350 | 1560-4400 |
Centrifugal Blower Fan Application
Inflatable and propelled
Centrifugal fans can make artificial air sources in the membrane, shoot or other needed air, but without natural wind, centrifugal fans will use their characteristics to create artificial air; Centrifugal fans, on the other hand, can be inflated in water, and inflatable objects such as atmospheric hovercraft or fast hovercraft can be propelled forward.
Home ventilation cooling
In daily life, many household appliances are equipped with centrifugal fans, on the one hand, household air conditioning equipment also uses centrifugal fans to complete the work. They play the role of heat dissipation and ventilation in these devices, circulating the air, making the hot summer fresh and cool, so that the indoor air is always dry and fresh.
