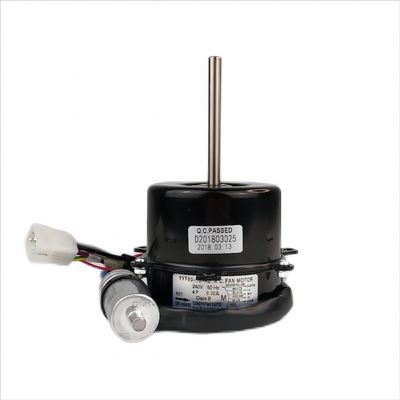

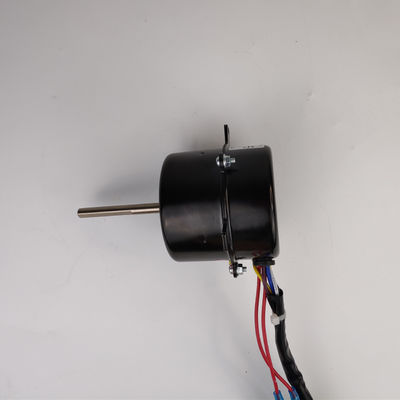

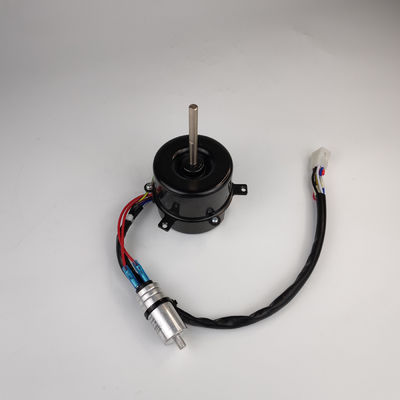

30W 70W Single Phase Induction Motor YDK 80mm Ac Induction Motor For Air Circulation Oven

Single phase 30W 70W YDK80mm ac induction motor for Air Circulation Oven

Introduction

This is a type of single phase AC Induction Motor capacitor run motor. It is designed for air circulation oven and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans etc. Motors are customized by different requirements and we can sell motors with fans as solution.

Quick Details

Output Power:8-40W

Type:AC Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B

Specification

AC induction motor features

• Multi base/ mounting solution available

• Custom OEM designs available upon request

• 10W to 40W rated range

• 4P/2P available

• PSC/CSCR/CSIR/SPIR run type available

• External capacitor ; Automatic reset protector device

• IP20 or IP44

• Variety speeds motor available

• Anti-rust treatment for shaft

More information

Induction motor is also known as "asynchronous motor", that is, the rotor is placed in the rotating magnetic field, under the action of the rotating magnetic field, a rotating torque is obtained, so the rotor rotates.

The appearance and internal structure of the induction motor

Rotors are rotating conductors, usually in the shape of a squirrel cage. The stator is the part of the motor that does not rotate, and the main task is to generate a rotating magnetic field. The rotating magnetic field is not achieved mechanically. Instead, alternating current is passed through several pairs of electromagnets, causing the magnetic pole properties to change cyclically, so it is equivalent to a rotating magnetic field. This kind of induction motor is not like DC motor has brushes or collector rings, according to the type of alternating current used, there are single-phase motors and three-phase motors, single-phase motors are used in such as washing machines, electric fans, etc.; The three-phase motor is used as the power equipment of the plant.
