Product Details:
|
| Product Name: | AC BLDC Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 600-3000 | Power: | 50W-250W |
| Voltage: | 110v-230v/110V | Insulation: | Class B/F |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 310v ec dc motor,340v ec dc motor,120w dc motor 600rpm |
||

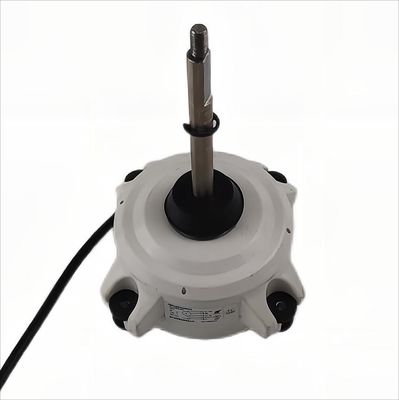

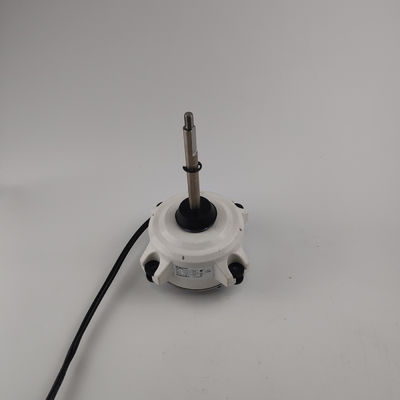

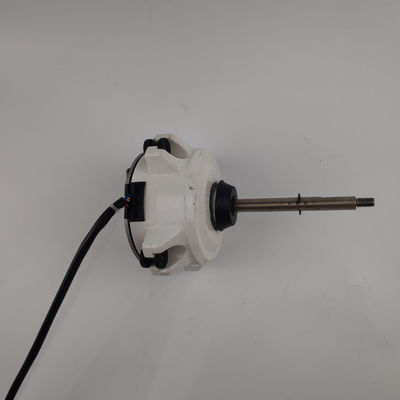

Resin Plastic pack EC BLDC 310-340V 120W BLDC motor for hot-water pump
Introduction
This page shows a high power EC/BLDC fan motor used in fan blower or air conditioner units and similar applications, which need to drive fan blowers.
Till now, Hengsheng has a various of specifications of AC BLDC motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.
Features of BLDC motor
1. Rated Voltage:DC310-340V
2. Output power range: 50-150W
3. Speed 300-1500 adjustable
4. The driver adopts the structure of aluminum shell completely closed, which has high protection level and is safe and reliable.
5. The driver adopts independent installation structure, which is convenient for disassembly and maintenance after sale.
6. The driver is integrated with three-speed, VSP10V control mode, and the function of speed feedback is optional.
7.Using infrared remote control, adjustable constant speed,constant torque, fan coil unit load, cassette fan coil unit load.clockwise or counterclockwise rotation
8.Using the same structure and installation method as the single-phase electric power, it is more convenient to replace and popularize
9.Rated speed 1070 RPM, rated output power 150W
Specification
| Model | Voltage | Power W | RPM | Control mode |
| BLDC-40W-8P | 220V/110V | 40 | 300-1500 | 3 speeds/0-10v |
| BLDC-80W-8P | 220V/110V | 80 | 300-1500 | 3 speeds/0-10v |
| BLDC-120W-8P | 220V/110V | 120 | 300-1500 | 3 speeds/0-10v |
| BLDC-200W-8P | 220V/110V | 200 | 300-1500 | 3 speeds/0-10v |
| BLDC-750W-8P | 220V/110V | 750 | 300-1500 | 3 speeds/0-10v |
BLDC Motor Application
The parameters of DC brushless motor are: DC power supply voltage, rated output power, rated load torque, rated working speed, the rotation direction of the motor is: clockwise, counterclockwise, and counterclockwise are required, the continuous working cycle of the motor can run according to a certain time, the motor it adapts to the environment is: indoor, outdoor, marine, high pressure, high temperature, humidity, corrosive gas, the structural form of the flange has square and round two structural forms. If you have any question regarding to the AC/BLDC motors, please feel free to contact us.
