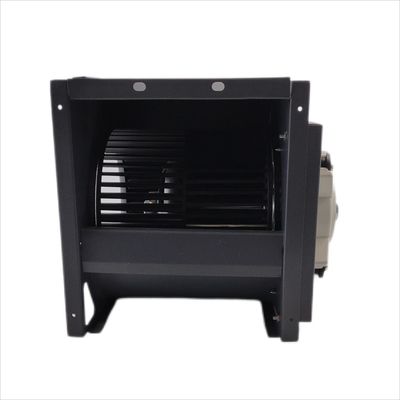

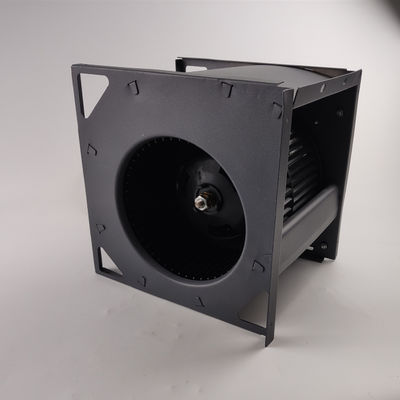

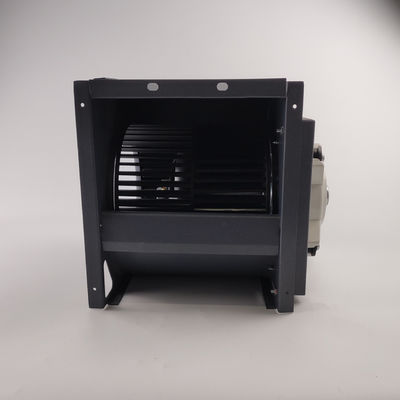

BLDC Double Inlet Centrifugal Fan 1000m3/H 150w Blower For Ventilation Fresh Air System

BLDC Double Inlet centrifugal Blower Fan 1000m³/h for ventilation fresh air system

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This page shows a DC310V cross flow fan unit with BLDC motor for Fresh air system and range hood. It is very popular as it is ultra-thin structure.

Quick Details

Type:Centrifugal Blower Fan

Electric Current Type:AC/DC/EC

Blade Material: PA66

Power:20-150W

Voltage:110/120/220/230/12/24

Air Volume:300-1000m³/h

Speed:customization available

Certification:CCC, CE

Fan casing material: Steel

Bearing:Ball Bearing /sleeve bearing

motor type:AC motor / BLDC motor

Fan Diameter:180mm

Application:Oven , heater , air purifier , home appliances , floor heating, range hood

EC Centrifugal Blower Fan Features

1. Soft Start

2. Polarity Protection

3. Under voltage Protection

4. Over voltage Protection

5. Current Limit Protection

6. Over Current Protection

7. Blocking Protection

8. 3 Self Starting Function

9.Variable Speed regulation Function

10. FG Speed Signal Output (open drain)

Centrifugal Blower Fan Applications

Double inlet forward tilting centrifugal blower fan products have the characteristics of energy saving and environmental protection, large air volume, low noise, long life, beautiful appearance, reliable operation and convenient installation. Widely used in FFU industry, air conditioning industry, fresh air system industry, household appliances, injection molding equipment, air purifier, automobile and office equipment and other fields. Good speed regulation performance and simple control: The speed regulation control of DC centrifugal blower fan is not only simple, compared with the frequency conversion speed regulation of induction motor, but also has better speed regulation performance. Please feel free to contact us if you need any type of BLDC centrifugal blower fan.
