220v 115v Single Phase AC Induction Motor 60hz For Tennis Softball Ball Machines

Single phase 220v 115v ac induction motor for Tennis Softball ball machines

Introduction

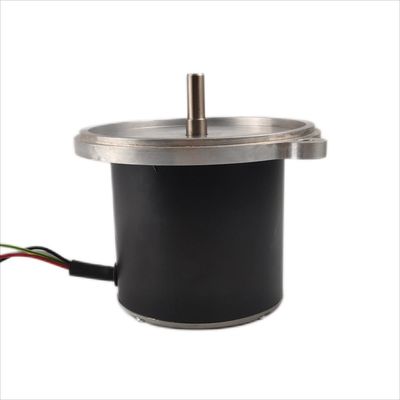

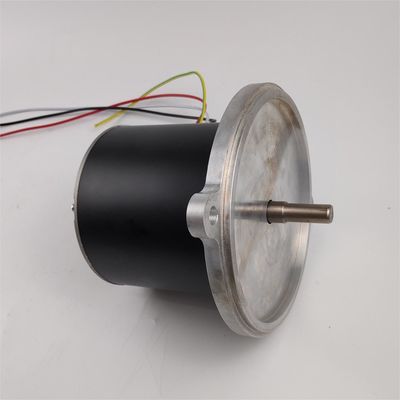

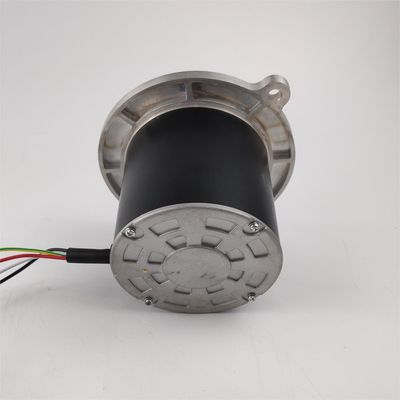

This is a type of ac induction motor . It is designed for tennis, softball ball machines and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans for agriculture etc. Motors are customized by different requirements and we can sell motors with pump head as solution.

Quick Details

Output Power:50-100W

Type:AC Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B

Specification

AC induction motor features

• Custom OEM designs available upon request

• 10W to 100W rated range

• 4P/2P available

• PSC/CSCR/CSIR/SPIR run type available

• External capacitor ; Automatic reset protector device

• IP20 or IP44

• Variety speeds motor available

• Anti-rust treatment for shaft

More information of AC induction motors

Rotating motor according to AC and DC division: DC motor, AC motor.

AC motors can be divided into synchronous motors and asynchronous motors (asynchronous motors are also known as induction motors)

Illustrate:

The power absorbed or emitted by a DC motor or DC generator is DC (that is, it is DC at the external wire), but the internal armature of the DC motor is alternating current.

Asynchronous motor (induction motor) is an AC motor, which can apply AC inductance to the rotor from the stator (generally the rotor circuit is closed, and there is no direct point connection with the stator side), and there is a rotating magnetic field with synchronous speed inside, and the rotor speed is generally slightly less than the synchronous speed, so it is called asynchronous machine.
