Product Details:
|
| Voltage: | 24-48V | Power: | 300-800W |
|---|---|---|---|
| Speed: | 1000-5500rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 220v Permanent Magnet Brushed DC Motor,600w Permanent Magnet Brushed DC Motor,1000rpm high speed dc motor |
||

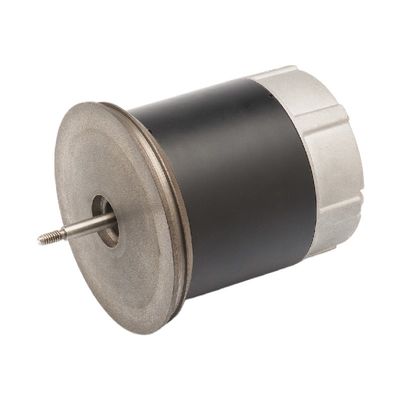

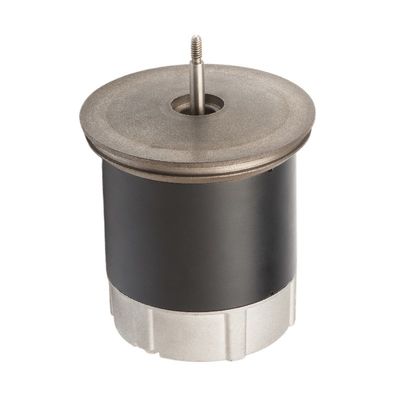

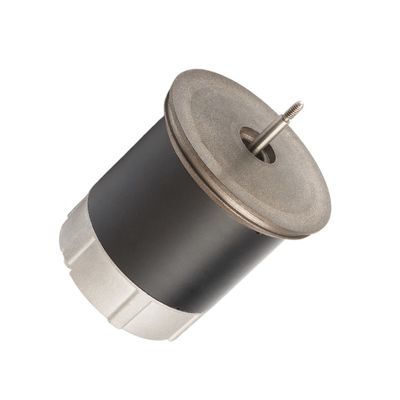

106ZYT 220V High Speed 600W Permanent Magnet Brushed DC Motor for Sump drain pump
Introduction
This is a permanent magnet brushed DC motor 300-800W use in Sump drain pump, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:300-800W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/220V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No load | Rated load | N. m | W | mm | ||
| Current | Speed | Current | Speed | Torque | Power | Length | ||
| 106ZYT001 (095) | 220 | ≤0.5 | 5500 ±8% | ≤5 | 5500 ±8% | 1.5 | 785 | 200 |
| 106ZYT001A | 220 | ≤0.4 | 4500 ±8% | ≤4.1 | 4500 ±8% | 1.5 | 628 | 200 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
Permanent Magnet Brushed DC Motor Applications
A permanent magnet brushed DC motor is a rotating motor that converts DC electrical energy into mechanical energy (DC motor) or converts mechanical energy into DC electrical energy (DC generator) with a brush device.
A permanent magnet brushed DC motor has below advantages.
Large starting torque - Permanent magnet motors, like other DC motors, have a large starting power and are very suitable for all walks of life. Despite their lower speeds, these motors are still very reliable, and when combined with one of our gearboxes, they create the ultimate gearmotor solution.
Cost-effective – Due to its smaller size and no excitation windings, permanent magnet motors are a reliable and cheaper choice for your application.
