Product Details:
|
| Voltage: | 12-24V | Power: | 10-150W |
|---|---|---|---|
| Speed: | 1000-3000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 12v brushed permanent magnet motor,1500RPM brushed permanent magnet motor,throttle valve permanent magnet dc |
||

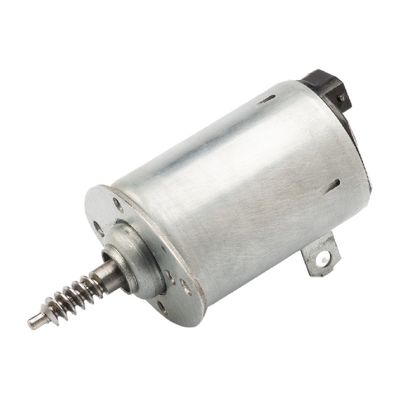

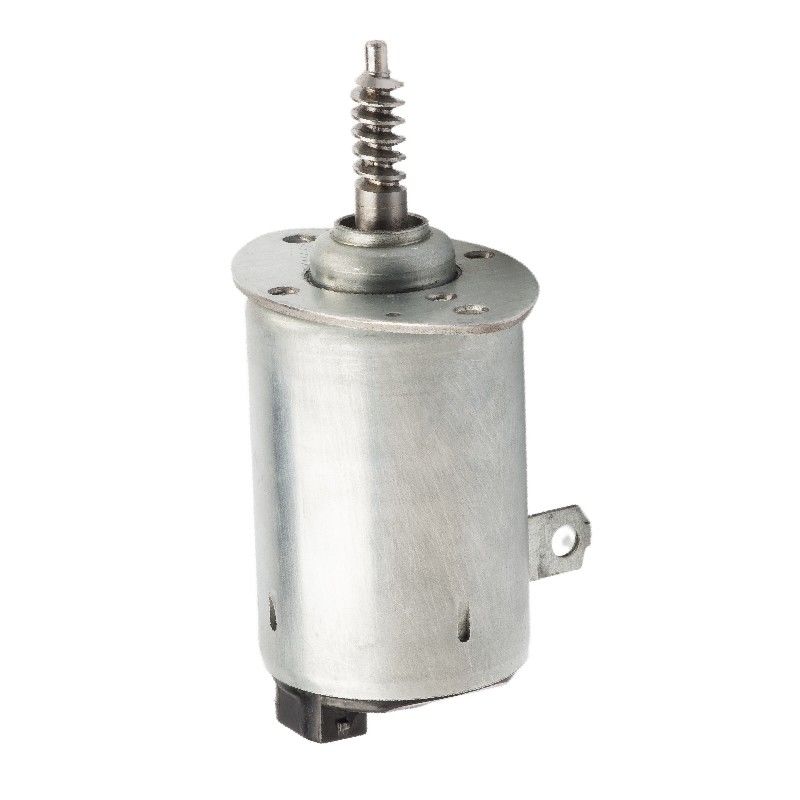

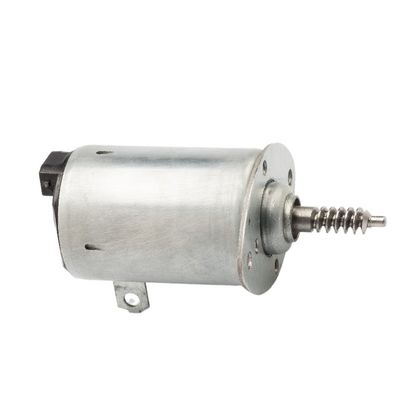

62ZYT 12V Permanent Magnet Brushed DC Motor for throttle valve
Introduction
This is a permanent magnet brushed DC motor 30-150W use for throttle valve, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:30-150W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/12V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE |
No load | Rated load | N.m TORQUE |
W Power |
mm Length |
||
| A CURRENT |
rpm SPEED |
A CURRENT |
rpm SPEED |
|||||
| 57ZYT001(040) | 24 | ≤0.35 | 2800±8% | ≤3 | 2200±8% | 0.2 | 46 | 101 |
| 57ZYT002(030) | 12 | ≤0.4 | 2400±8% | ≤3.6 | 1800±8% | 0.13 | 25 | 91 |
| 57ZYT003(025) | 24 | ≤0.38 | 3100±8% | ≤1.8 | 2500±8% | 0.1 | 26 | 86 |
| 57ZYT004(020) | 24 | ≤0.5 | 3600±8% | ≤1.9 | 3000±8% | 0.08 | 25 | 81 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
CAR
Electric Bicycle
FAN
Home Appliance
Channel gate
Permanent Magnet Brushed DC Motor Applications
PMDC motor (Permanent Magnet Brushed DC) is a permanent magnet brushed DC motor, the most common DC motor in the world, this kind of motor uses permanent magnets to generate a stator magnetic field, the advantage is that the response to voltage changes is very fast, the disadvantage is that the magnetism of the permanent magnet will gradually decline over time.
PMDC motor with low noise, high efficiency, small volume, energy saving, high efficiency and other characteristics, is used in various fields, from household appliances, to all kinds of unmanned vehicles and electronic transmission equipment, can see the figure of the motor.
