Product Details:
|
| Voltage: | 24-48V | Power: | 30-300W |
|---|---|---|---|
| Speed: | 1000-3500rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 20v permanent magnet dc servo motor,24v permanent magnet dc servo motor,24v brushed dc motor 300w |
||

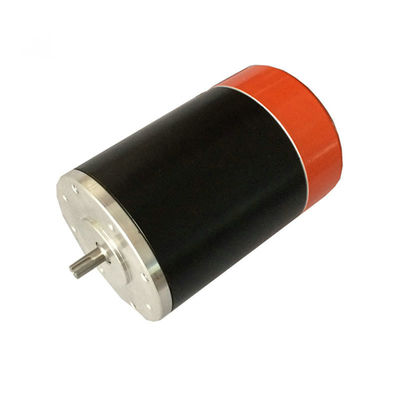

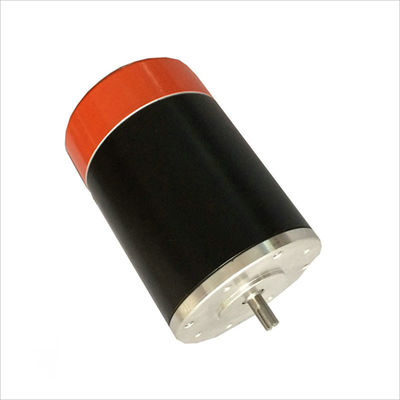

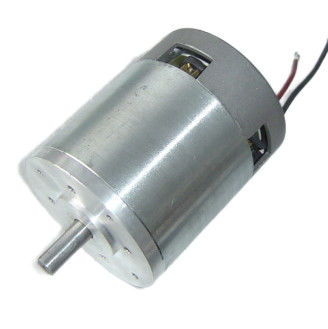

88ZYT 20-24V 300W Permanent Magnet Brushed DC Motor for Solar tracking system
Introduction
This is a permanent magnet brushed DC motor 100-300W use for solar tracking system or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:100-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/48V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| 88ZYN040 (040) | 20 | ≤3.5 | 3800 ±8% | ≤18 | 3300 ±8% | 0.75 | 259 | 108 |
| 88ZYN040 (040) | 24 | ≤3.5 | 3600 ±8% | ≤20 | 3000 ±8% | 1 | 314 | 108 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
How to maintain a permanent magnet brush motor?
It is a complex problem to use and maintain carbon brushes and take measures. The common problems are summarized as follows:
(1) Frequently check that the screws on the brush rod are loose due to heating or vibration during the operation of the permanent magnet brush motor.
(2) The carbon brush shall be fixed at the most appropriate position (i.e. the neutral wire), and the brush holder shall not be moved forward or backward at will.
(3) Check the movement of the carbon brush, whether the carbon brush moves up and down freely in the brush box, and whether there is jamming.
(4) Check the pressure of the carbon brush. The spring pressure on the carbon brush is an important factor to ensure the stable operation of the brush and the uniform conduction of current between various carbon brushes.
