Product Details:
|
| Voltage: | 24-100V | Power: | 30-120W |
|---|---|---|---|
| Speed: | 1000-3000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 24V Permanent Magnet Brushed DC Motor,100V Permanent Magnet Brushed DC Motor,PMDC high torque brushed motor |
||

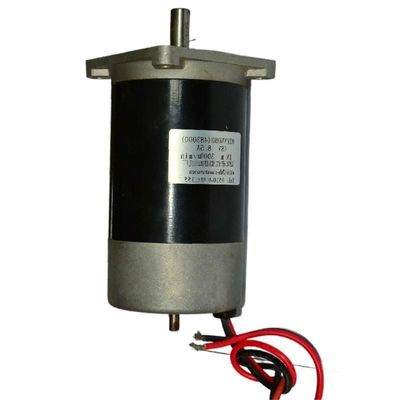

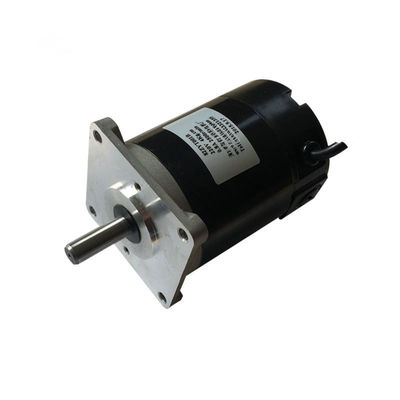

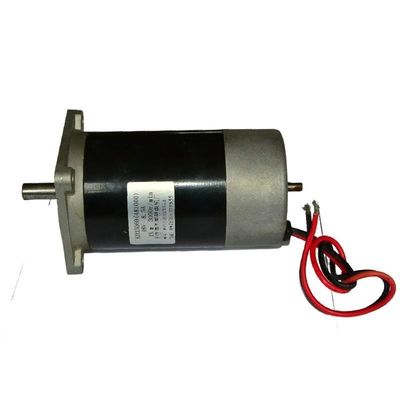

82ZYT high torque 24-100V Permanent Magnet Brushed DC Motor for Fish Pond Feeder Accessories
Introduction
This is a permanent magnet brushed DC motor 30-120W use for fish pond feeder accessories or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:30-120W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/48V/100V/220V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| 82ZYT001(040) | 220 | ≤0.1 | 1400±8% | ≤0.4 | 1000 ±8% | 0.4 | 42 | 122 |
| 82ZYT002D(075) | 220 | ≤0.1 | 1500 ±8% | ≤0.7 | 1200 ±8% | 0.7 | 88 | 157 |
| B82ZYT001(020) | 12 | ≤1.72 | 2900 ±8% | ≤6. 57 | 2300 ±8% | 0.2 | 48 | 101 |
| B82ZYT001A(020) | 12 | ≤1.7 | 3200 ±8% | ≤7.2 | 2500 ±8% | 0.2 | 52 | 101 |
| B82ZYT001B(020) | 12 | ≤1.9 | 3800 ±8% | ≤8.5 | 3000 ±8% | 0.2 | 63 | 101 |
| B82ZYT001C(020) | 12 | ≤1.7 | 3800 ±8% | ≤9.5 | 3000 ±8% | 0.2 | 67 | 101 |
| C82ZYT001 | 24 | ≤1 | 2800 ±8% | ≤7 | 2500 ±8% | 0.4 | 105 | 94 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
Let's talk about the differences between brushed and brushless motors of permanent magnet DC motors.
With the wide use of motors now, a wide range of motor equipment gradually appeared, and permanent magnet DC motor in use, brushless and brushed, in order to facilitate our reference and selection, then on the difference between the two to introduce and understand, and then facilitate the user's understanding and application.
Their primary difference is that the excitation windings of brushed DC motors are replaced by permanent magnets.
Permanent magnet brushless: is a motor device that establishes a magnetic field by one or more permanent magnets, and its performance is similar to that of a separately excited DC device with constant excitation current, changing the armature voltage to facilitate speed regulation. Compared with separately excited DC motors, it has the advantages of small size, high efficiency, simple structure and low copper consumption, and is the primary type of low-power motor.
Permanent magnet brush: The stator of the brushed motor is equipped with a fixed main magnetic and brushes, and the rotor is equipped with an armature winding and commutator. The electrical energy of the DC power supply enters the armature winding through the brushes and commutators to generate an armature current, and the magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, so that the motor rotates with load. Because of the existence of brushes and commutators, the structure of brushed motors is more complicated.
