Product Details:
|
| Voltage: | 24-220V | Power: | 100-500W |
|---|---|---|---|
| Speed: | 1000-5000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | permanent magnet high speed brushed motor,100W PMDC brushed motor,500W PMDC brushed motor |
||

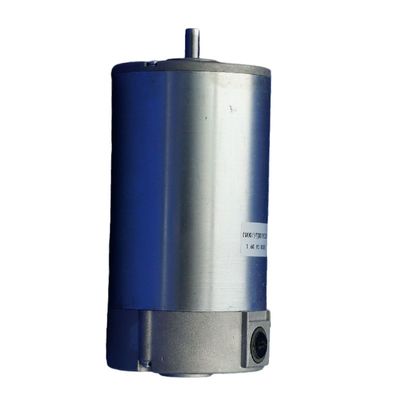

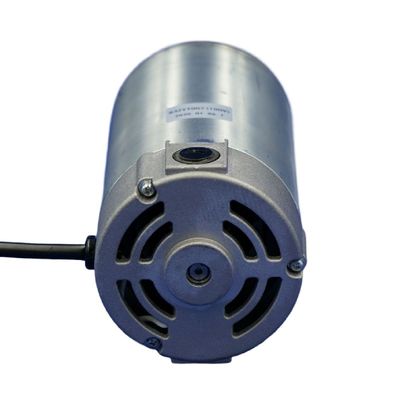

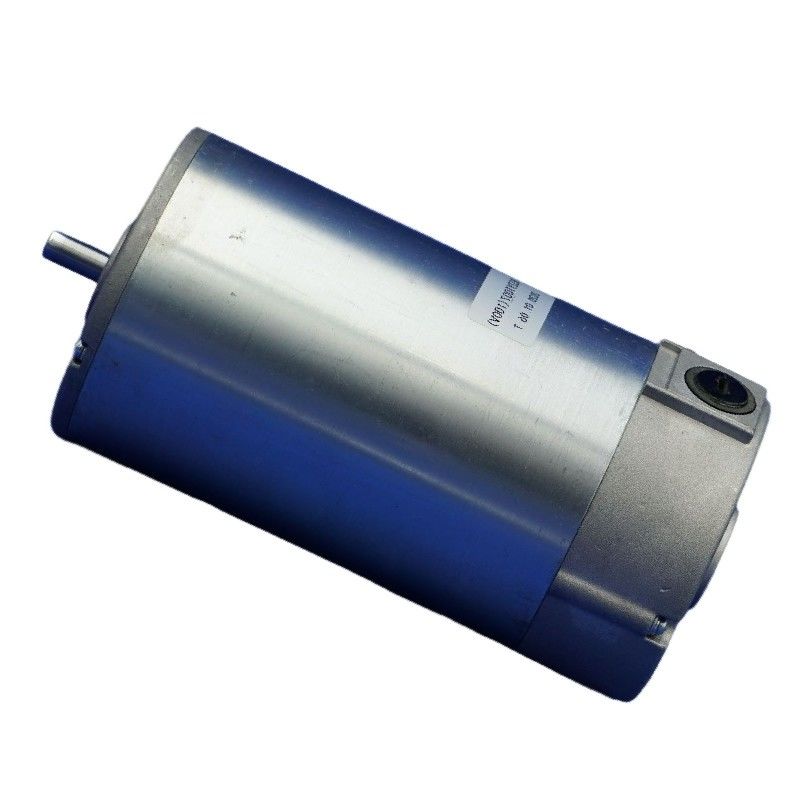

83ZYT High Speed 110/220V 100-500W Permanent Magnet Brushed DC Motor
Introduction
This is a permanent magnet brushed DC motor 100-500W use for fish pond feeder accessories or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:100-500W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:110V/220V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| A83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT004 | 220 | 0.18 | 6000 ±8% | 2.00 | 5500 ±8% | 0.5 | 288 | 135 |
| A83ZYT005 | 220 | 0.18 | 5100±8% | 2.50 | 4500 ±8% | 0.8 | 377 | 166 |
| A83ZYT006 | 220 | 0.18 | 7000 ±8% | 3.50 | 6300 ±8% | 0.8 | 528 | 166 |
| B83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT005 | 220 | 0.18 | 5100±8% | 2.50 | 4500 ±8% | 0.8 | 377 | 176 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
When the supply voltage is applied to a permanent magnet brushed DC motor, the current flows and the brushed DC motor rotates. Characteristics such as supply voltage, speed, and torque are all related to each other.
Key takeaways of permanent magnet brush DC motors.
When torque is applied, the brushed DC motor speed drops at a constant value.
When the supply voltage is increased, the permanent magnet brushed DC motor speed will rise.
When torque is applied, the permanent magnet brushed DC motor current increases at a constant value.
Maximum torque = speed is zero = brushed DC motor current is maximum.
