Product Details:
|
| Name: | Electric Water Pump Motor | Voltage: | 110-115V/208-230V |
|---|---|---|---|
| Phase: | Single Phase | Application: | Pedestal Sump Pump |
| Power: | 1-2.2kw | Speed: | 1500-3000rpm |
| Frequency: | 50/60hz | Insulation: | Class B |
| Highlight: | 1KW single phase asynchronous motor,2.2KW single phase asynchronous motor,1400RPM high speed water pump motor |
||

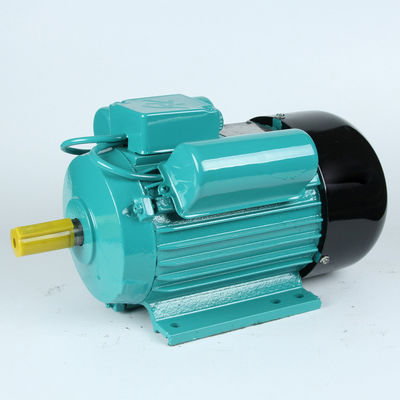

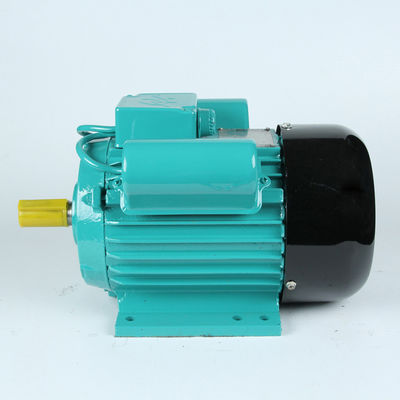

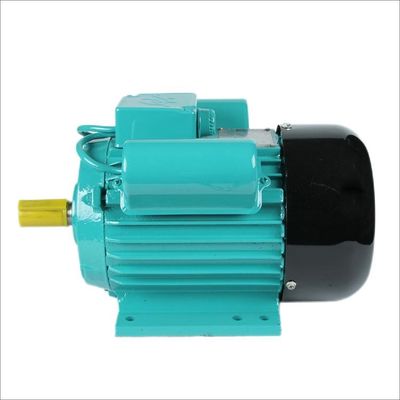

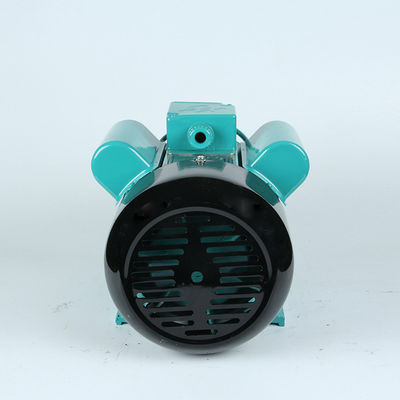

Single phase asynchronous electrical water pump motor 1-2.2KW 1400RPM
Introduction
This page shows a 1-2.2KW 1400RPM electrical water pump motor for circulating/booster pumps and other similar applications.
Till now, Hengsheng has a variouty of specifications of Electric water pump Motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.
Features of eclectic water pump motor
Small size, large capacity, large starting torque, high efficiency, safe and reliable operation, simple structure, easy maintenance and other characteristics.
Specification
| Type | Power | Current | Power factor | Eff | Rpm | Tstart/Tn | Ist/In | Tmax/Tn | |
| kw | Hp | (A) | (cosφ) | (%) | (r/min) | Nm | Nm | Nm | |
| YL7112 | 0.37 | 1/2 | 2.73 | 0.92 | 67 | 2800 | 1.8 | 6 | 1.8 |
| YL7122 | 0.55 | 3/4 | 3.88 | 0.92 | 70 | 2800 | 1.8 | 6 | 1.8 |
| YL7114 | 0.25 | 1/3 | 1.99 | 0.92 | 67 | 1400 | 1.8 | 6 | 1.8 |
| YL7124 | 0.37 | 1/2 | 2.81 | 0.92 | 65 | 1400 | 1.8 | 6 | 1.8 |
| YL801-2 | 0.75 | 1 | 5.15 | 0.92 | 72 | 2810 | 1.8 | 6 | 1.8 |
More information of Electric water pump motor
YL capacitor starting capacitor running electric water pump motor is connected to two capacitors in the secondary phase winding, one of which passes through the centrifugal switch, and cuts off the power supply after starting; The other is always involved in the work of the secondary winding. Among the two capacitors, the capacity of the starting capacitor is large, while the capacity of the operating capacitor is small. This kind of single-phase capacitor starting and running electric water pump motor, comprehensive single-phase capacitor starting and capacitor running motor advantages, so this electric water pump motor has better starting performance and running performance, in the same frame number, the power can be increased by 1 ~ 2 capacity levels, the power can reach 0.37 ~ 5.5KW.
Conditions of use
Ambient temperature: -15°C<Θ<40°C
Altitude: not more than 1000m Rated voltage: 220V
Rated power: 50Hz
Protection class: IP44/54
Insulation class: B/F
Working mode: continuous S1
