Product Details:
|
| Product Name: | Single Phase AC Induction Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 600-3000 | Power: | 100W-550W |
| Voltage: | 110v-230v/110V | Insulation: | Class B/F |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 370W single phase small ac motor,119W single phase small ac motor,250w single phase induction |
||
Essential details
Type: Single Phase AC Induction Motor
Warranty: 1 year
Place of Origin: Jiangsu, China
Brand Name: HS
Model Number: Valve motor
Frequency:50/60Hz
Phase:Single-phase
Protect Feature: Waterproof
AC Voltage: 208-230 / 240 V
Efficiency: IE3
Rated output power(N.m): 1.7
Rated speed(r/min): 1400
Insulation(insulation): F
Certification: RoHS
Specification of Single Phase AC Induction Motor
| model | voltage | frequency | torque | rated speed | power | insulation |
| V | Hz | N.m | r/min | W | class | |
| YZDL10255Y4P | 380 | 50 | 1.7 | 1400 | 250 | F |
| YZDL10275Y4P | 380 | 50 | 2.5 | 1400 | 370 | F |
| YZDL102100Y4P | 380 | 50 | 3.7 | 1400 | 550 | F |
| YY10060 | 220 | 50-60 | 0.57 | 2000 | 119 | B |
Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
Single Phase AC Induction Motor Classification
Single-phase induction motors provide additional magnetic flux in a number of complementary ways to achieve self-starting. The classification of single-phase induction motors depends on how this additional flux is generated:
1. Split-phase induction motor.
2. Capacitor-start induction motor.
3. The capacitor starts the capacitor to run the induction motor (two-value capacitor method. for starting and running electric motors).
4. Permanent split capacitor (PSC) motor.
Our major single phase AC induction motor are Permanent split capacitor (PSC) motor.

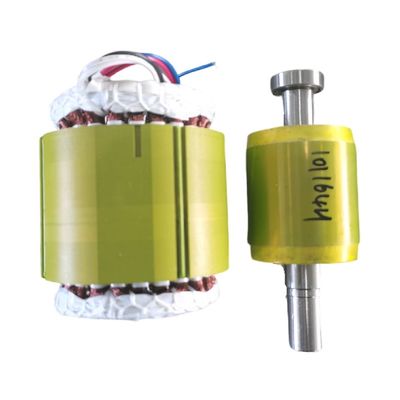

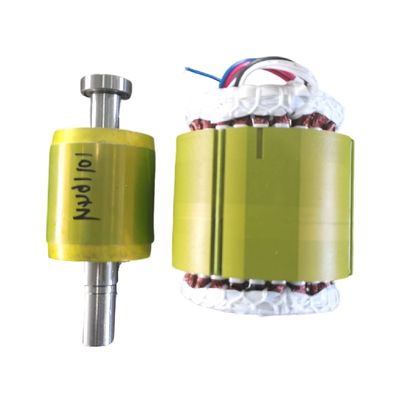

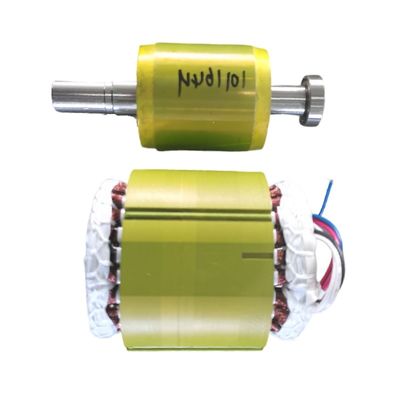

It has a cage rotor and stator. The stator has two windings – the main winding and the auxiliary winding. It has only one capacitor in series with the starting winding. It does not have a start switch.
