Product Details:
|
| Product Name: | Single Phase AC Induction Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1400 | Power: | 20W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 20w Single Phase AC Induction Motor,single phase induction 220v,single phase induction 50hz |
||

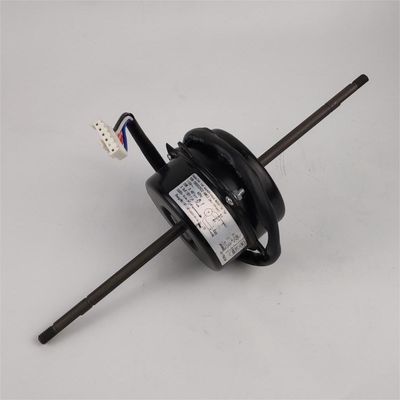

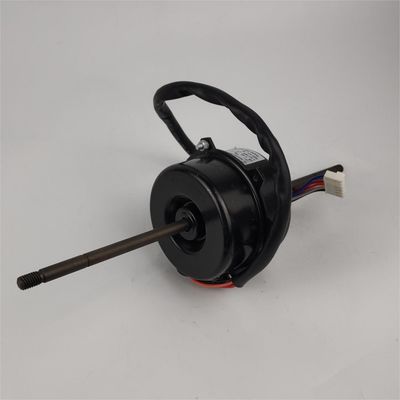

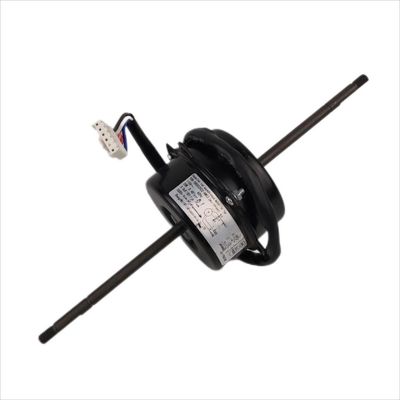

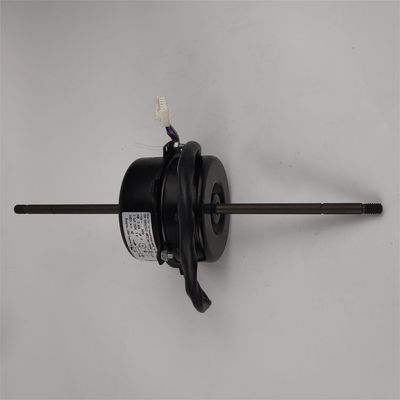

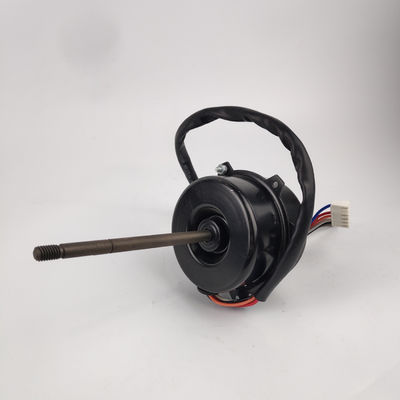

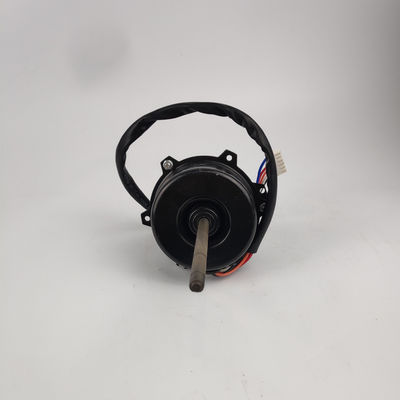

Single Phase AC Induction Motor 20W 220V 50HZ YDK80mm for purification ventilation system
Introduction
This is a type of single phase AC induction motor for purification ventilation system. It is designed for air purifier and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans etc. Motors are customized by different requirements and we can sell motors with fans as solution.
Quick Details
Output Power:8-40W
Type:Single Phase AC Induction Motor
Frequency:50/60hz
Phase:Single-phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Voltage:115/120 V/208-230V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-10W-4P | 220/110 | 50/60 | 1100 | 10 |
| YSK-20W-4P | 220/110 | 50/60 | 1350 | 20 |
| YSK-30W-4P | 220/110 | 50/60 | 1160 | 30 |
| YSK-45W-4P | 220/110 | 50/60 | 1250 | 40 |
Features
• Multi base/ mounting solution available
• Custom OEM designs available upon request
• 10W to 40W rated range
• 4P/2P available
• PSC/CSCR/CSIR/SPIR run type available
• External capacitor ; Automatic reset protector device
• IP20 or IP44
• Variety speeds motor available
• Anti-rust treatment for shaft
More information of single phase AC induction motor
With the rapid development of the machinery industry, our use of motors is also increasing, almost inseparable from its use, according to different working environments our application equipment is also different, brushless motors and AC induction motor applications are also many, how should we distinguish when choosing the right motor for equipment?
Compared with AC induction motors, brushless motors are simpler in structure, less noisy and easier to maintain.
1. Speed/torque characteristics:
Brushless motor: flat - under the condition of load rating, can work normally at all speeds.
AC induction motor: non-linear - low torque at low speed.
2..Output power/volume:
Brushless motor: high - due to the permanent magnet of the rotor, a smaller volume can be achieved for a given output power.
AC Induction motor: medium - since both stator and rotor have windings, the ratio of output power to volume is lower than that of BLDC.
