Product Details:
|
| Product Name: | Air Conditioner Fan Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-2300 | Power: | 10W-100W |
| Voltage: | 110v-230v/100V, DC100V 310V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | DC310v Air Conditioner Fan Motor,DC340v Air Conditioner Fan Motor,air conditioner electric motor 1500rpm |
||

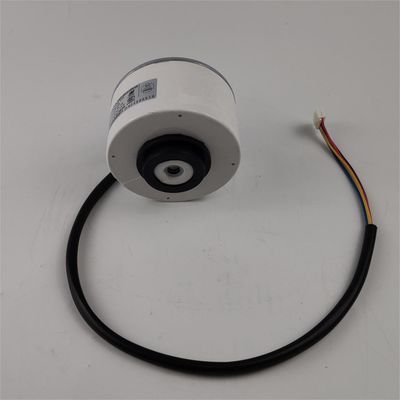

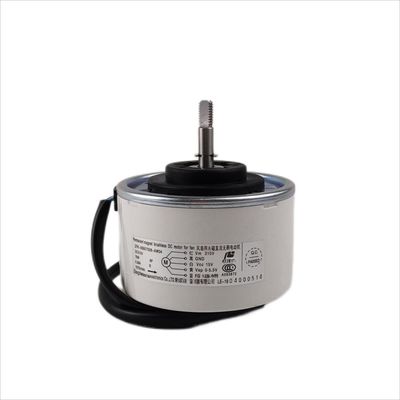

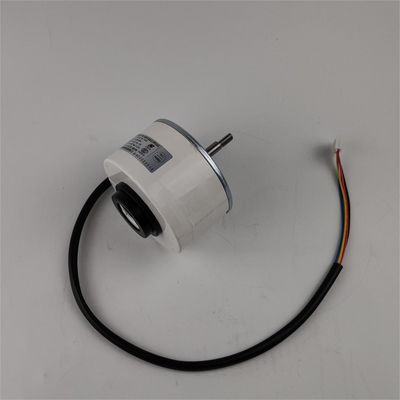

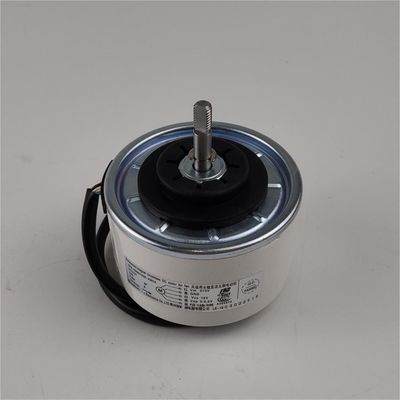

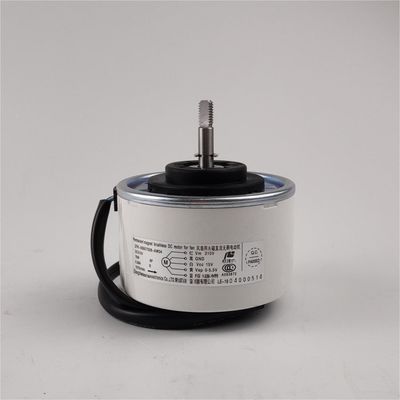

Air conditioner fan motor DC310-340V 70W 1500RPM Resin plastic type
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting AC BLDC fan motor, motor driver, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This page shows a Resin pack brushless dc fan motor used in split air conditioner indoor unit. Motor is a replacement model for LG SAMSUNG PANASONIC air conditioners.We can also sell motors with fans as solution.
Quick Details
Type:Air Conditioner Fan Motor
Output Power:10-250W
Certification:CCC, CE, ROHS, ISO9000
Protect Feature:Totally Enclosed
DC Voltage:24/48/110 V/310-340V
Insulation:Class B
Specification
| Model | Voltage | RPM | A | Output Power |
| ZFK-08802208 | 24 | 1100 | 1.3 | 22 |
| ZFK-08801508 | 310 | 1600 | 0.05 | 15 |
| ZFK-08804008 | 310 | 1050 | 0.13 | 40 |
| ZFK-08808008 | 310 | 960 | 0.26 | 80 |
Our Service
1. Warranty : 1 year warranty for all products.
2. Specializing in AC and BLDC motors for 16 years.
3. 100% inspection before final packing.
4. OEM: we can make the sample as your sample or design drawing.
5. Sample : free of charge when we start to cooperate.Small orders,Mixed orders,Trial orders are accepted . Customers pay the charge of Freight .
6.Prompt reply: we can reply your inquiry and email within 24 hours.
More information of air conditioner fan motor
What are the characteristics of air conditioners
1. Wall-mounted air conditioner:
Wall-mounted air conditioners are popular, and technology is constantly innovating. The ventilation function is the latest technology used in wall-mounted air conditioners to ensure fresh air at home, prevent air conditioning diseases, and use more comfortably and reasonably
2. Vertical cabinet air conditioner:
To adjust the temperature in a large range of spaces, such as large living rooms or commercial places, vertical cabinet air conditioners are the most suitable.
3. Window air conditioner:
Easy to install, cheap and suitable for small rooms. Pay attention to its silent design when choosing, because the window machine is usually noisier than the split air conditioner, so it is better to choose a window machine close to the noise standard of the split air conditioner.
4. Central air conditioning (multi-connection and air duct machine)
We produced most of the fan motors used in air conditioner, please feel free to contact us.
