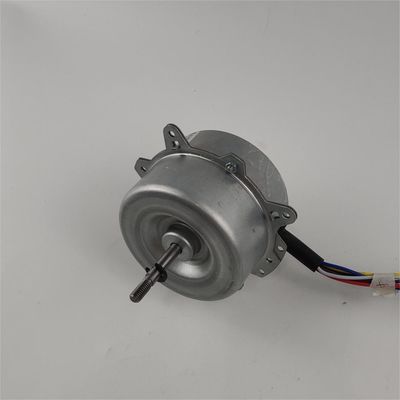

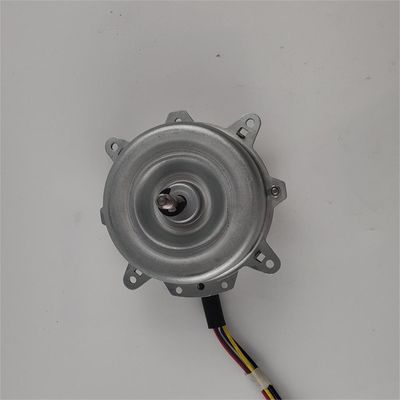

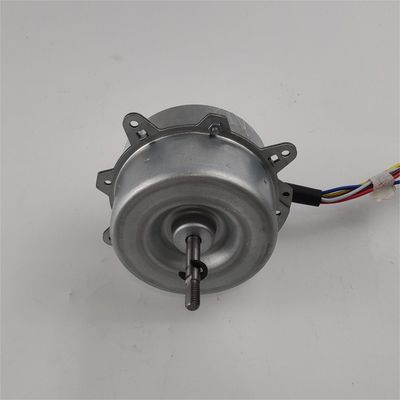

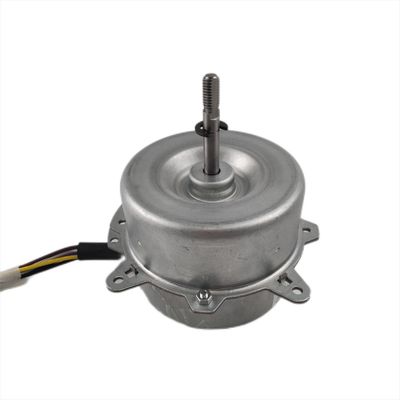

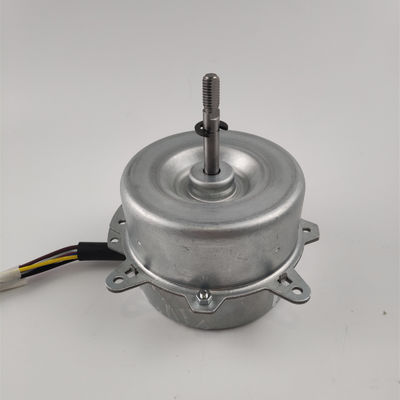

60hz 35w Air Conditioner Fan Motor 208-230V Single Phase Steel Housing Motor

208-230V 60hz single phase 35W steel housing Motor for room air conditioner

Introduction

Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting air conditioner fan motor , motor driver, BLDC motor and PM motor for several years. We have our own production base and a strong R&D team. This is a single phase capacitor run central AC unit fan motor . Power range from 5-750W, speed 500-1500RPM.

Quick Details

Type: Air conditioner fan motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B/F

Output Power:20-120W

Features:

• Reversible plug for easy rotation

• Class E/F/H Insulation

• Quick installation

• Energy efficient

• Quiet operation

• Ball bearing

• Dual voltage 115/208-230 voltage

• Diameter: Steel cover144mm

• Automatic overload

• Operating temp -10-43 degree

• Number of Pole: 6/8Pole

• Shaft size:8-15mm

• Speed: 825-1350rpm

• Thermal protection

• High efficiency,High reliability,Little vibration,Low noise

Specification

More information of Air conditioner fan motor

Is it necessary to repair the air conditioner motor if it is broken?

Compared with air conditioners, the price of air conditioning motors is not expensive, but replacing the motor requires hiring professional workers to replace it, and the cost paid to the worker master is much higher than the price of the air conditioning motor itself.

The motor is damaged, generally not easy to repair, and needs to be disassembled by professional motor manufacturers for failure analysis. It is recommended to replace the new air conditioner motor directly.
