Product Details:
|
| Product Name: | Air Conditioner Fan Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Power: | 35W |
| Voltage: | 110v-230v/100V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | 50hz ac condenser fan motor,60hz ac condenser fan motor,220v ac condenser motor |
||
Split Air Conditioner Parts 220V 50-60Hz AC Plastic resin pack fan motor
Introduction

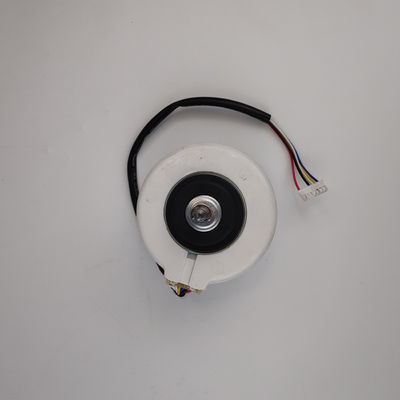

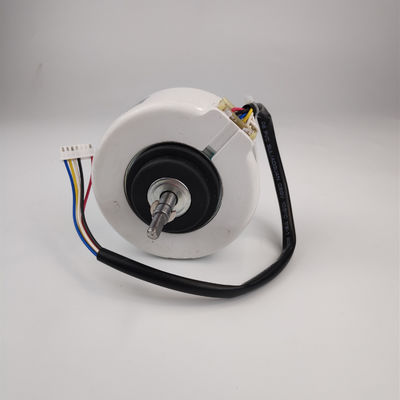

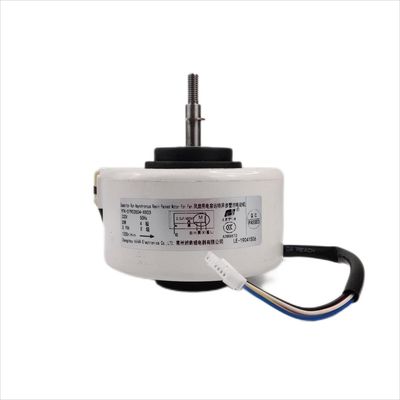

This is a resin pack 220v fan motor apply for split air conditioner indoor unit, the motor power for typical model are 13W 15W 30W The thickness of the motor body usually are 39mm or 49mm. We have replacement air conditioner fan motors which used in LG Samsung Dakin brand air conditioners . We supply all types of air conditioner fan motors. Please feel free to contact us.
Specification
Product name: Air conditioner fan motor
| Model | Voltage | Hz | RPM | Output Power |
| RPG-15 | 220V | 50 | 1350 | 15W |
| RPG-25 | 220V | 50 | 1350 | 25W |
| RPG-35 | 220V | 50 | 1350 | 35W |
Features
Reasonable structure
Small vibration
Low noise
Long life
Over current protection
More information of air conditioner fan motor
What to do if the fan motor of the air conditioner indoor unit overheats?
Analysis of the causes of overheating of the fan motor of the air conditioner indoor unit: 1, the inlet air or outlet air is not smooth to form a large load and heat, 2, the blades are enlarged or widened, 3, the capacitance capacity is too large or too small, 4, the power supply is too high or low, 5, the motor bearing is damaged, 6, the fan motor coil inter-turn short circuit, you can eliminate one by one, if you want to replace the motor must remove the original motor, you should pay attention to the length of the shaft, notch, motor power, thickness, diameter can be, and ask the capacitor volume.
