Product Details:
|
| Voltage: | 380VAC | Power: | 800-2500W |
|---|---|---|---|
| Speed: | 700-1000rpm | Blade Material: | Galvanized Plate Or Plastic |
| Airflow: | 12000 -25000 M³/h | IP Class: | IP 55/44 |
| Frequency: | 50/60 | Noise: | 60-75dB(A) |
| Highlight: | 50hz Industrial Axial Flow Fans,3 phase axial air flow fan,380v phase axial air flow fan |
||

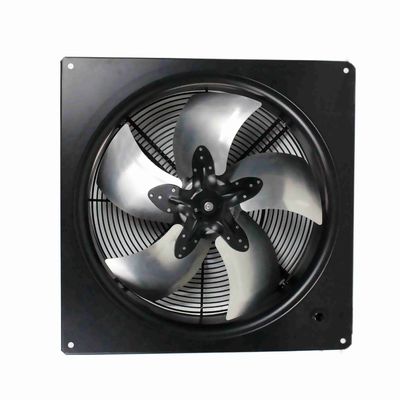

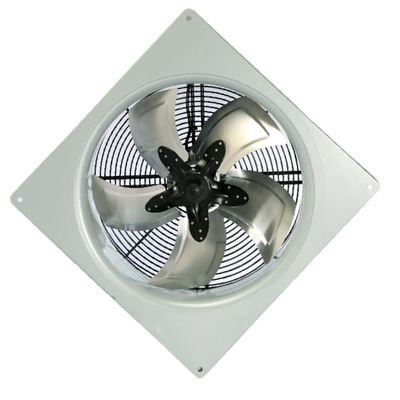

3 Phase 380V 50Hz 750mm Industrial Axial Flow Fans For Central AC Air-Cooling Screw Units
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting industrial axial flow fans, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.We can sell motors with fans as solution.
Industrial Axial Flow Fans Features
◇The optimal combination of high-efficiency wing-shaped silent blades and high-efficiency customized motors achieves perfect aerodynamic performance
◇The overall large arc roof plate, the flow field loss of the inlet is small, and the structural efficiency of the fan is high
◇The motor protection level is as high as IP66, and the operating temperature rise is low, which can achieve long-term reliable operation
◇Low energy consumption in operation, achieving low operating cost and low environmental pollution
◇Beautiful appearance, compact size, easy installation and maintenance
Product Specification
◇Size: Φ400~Φ990mm
◇Air volume range: maximum 35000m3/h
| Type | Motor | Voltage | Frequency | Speed | Airflow | Power | Current | Noise | Pst |
| (VAC) | (Hz) | (rpm) | (m3 /h) | (w) | (A) | (dBA) | (Pa) | ||
| FA700NB6-F5A-GZ01 | YYB160060006GZ01 | 380 | 50 | 925 | 12500 | 880 | 1.7 | 66 | 60 |
| FA750NB6-F5A-GZ02 | YYB160090006GZ02 | 380 | 50 | 925 | 15500 | 1190 | 2.3 | 69 | 60 |
| FA800NB6-F5A-GZ03 | YYB210150006GZ03 | 380 | 50 | 945 | 20000 | 1860 | 3.8 | 70.5 | 80 |
| FA850NB6-F5A-GZ04 | YYB210180006GZ04 | 380 | 50 | 915 | 24000 | 2460 | 4.8 | 72 | 80 |
| FA900NB6-F5A-GZ05 | YYB210180006GZ04 | 380 | 50 | 930 | 25000 | 2264 | 4.5 | 73 | 80 |
| FA900NB8-F5A-GZ06 | YYB210130008GZ06 | 380 | 50 | 725 | 21500 | 1780 | 4 | 67 | 80 |
Application
Air-cooled screw units, air-cooled module units, heating heat pump units, unitary duct units, rooftop units, etc
More information of Industrial Axial Flow Fans
Compared with centrifugal fans, axial flow fans have the following main characteristics:
2. The adaptability of axial flow fans to the change of air volume of the air duct system is better than that of centrifugal fans. If the resistance calculation of the air duct system is not very accurate, the actual resistance is greater than the calculated resistance, or the fan air volume and wind pressure required for the change of coal type are different, the unit will not reach the rated output. The axial flow fan can use the dynamic (static) blade to adjust the angle of closing or opening the moving blade to adapt to the change of air volume and wind pressure, but the impact on the efficiency of the fan is small.
