Product Details:
|
| Voltage: | 380VAC | Power: | 800-2500W |
|---|---|---|---|
| Speed: | 700-1000rpm | Blade Material: | Galvanized Plate Or Plastic |
| Airflow: | 12000 -25000 M³/h | IP Class: | IP 55/44 |
| Frequency: | 50/60 | Noise: | 60-75dB(A) |
| Highlight: | 800mm 3 phase industrial fan,3 phase industrial fan 700rpm,axial fan air flow 380v |
||

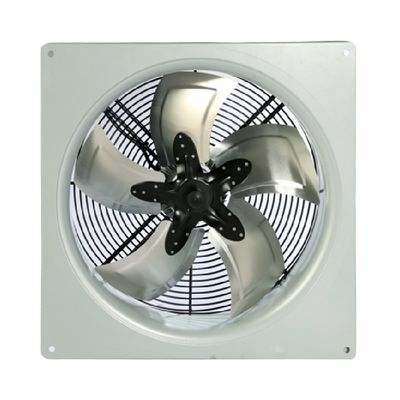

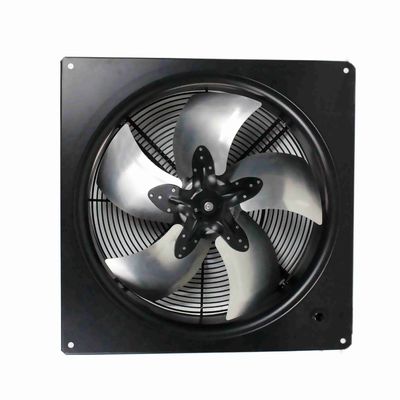

3 Phase 725RPM 380V 800mm Industrial Axial Flow Fans For Heating Water Heat Pump Units
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting industrial axial flow fans, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.We can sell motors with fans as solution.
Industrial Axial Flow Fans Features
◇The optimal combination of high-efficiency wing-shaped silent blades and high-efficiency customized motors achieves perfect aerodynamic performance
◇The overall large arc roof plate, the flow field loss of the inlet is small, and the structural efficiency of the fan is high
◇The motor protection level is as high as IP66, and the operating temperature rise is low, which can achieve long-term reliable operation
◇Low energy consumption in operation, achieving low operating cost and low environmental pollution
◇Beautiful appearance, compact size, easy installation and maintenance
Product Specification
◇Size: Φ400~Φ990mm
◇Air volume range: maximum 35000m3/h
| Type | Motor | Voltage | Frequency | Speed | Airflow | Power | Current | Noise | Pst |
| (VAC) | (Hz) | (rpm) | (m3 /h) | (w) | (A) | (dBA) | (Pa) | ||
| FA700NB6-F5A-GZ01 | YYB160060006GZ01 | 380 | 50 | 925 | 12500 | 880 | 1.7 | 66 | 60 |
| FA750NB6-F5A-GZ02 | YYB160090006GZ02 | 380 | 50 | 925 | 15500 | 1190 | 2.3 | 69 | 60 |
| FA800NB6-F5A-GZ03 | YYB210150006GZ03 | 380 | 50 | 945 | 20000 | 1860 | 3.8 | 70.5 | 80 |
| FA850NB6-F5A-GZ04 | YYB210180006GZ04 | 380 | 50 | 915 | 24000 | 2460 | 4.8 | 72 | 80 |
| FA900NB6-F5A-GZ05 | YYB210180006GZ04 | 380 | 50 | 930 | 25000 | 2264 | 4.5 | 73 | 80 |
| FA900NB8-F5A-GZ06 | YYB210130008GZ06 | 380 | 50 | 725 | 21500 | 1780 | 4 | 67 | 80 |
Application
Air-cooled screw units, air-cooled module units, heating heat pump units, unitary duct units, rooftop units, etc
More information of Industrial Axial Flow Fans
Compared with centrifugal fans, axial flow fans have the following main characteristics:
The axial flow fan is better than the centrifugal fan in terms of weight and flywheel effect value. The axial flow fan allows the use of higher speed and higher flow coefficient, so under the same air volume and wind pressure parameters, the rotor of the axial flow fan is lighter, that is, the flywheel effect value is smaller, so that the starting torque of the axial flow fan is greatly smaller than the starting torque of the centrifugal fan. Generally, the starting torque of axial flow supply and induced draft fans is only 14.2~27.8% of centrifugal fans.
