Product Details:
|
| Voltage: | 380VAC | Power: | 800-2500W |
|---|---|---|---|
| Speed: | 700-1000rpm | Blade Material: | Galvanized Plate Or Plastic |
| Airflow: | 12000 -25000 M³/h | IP Class: | IP 55/44 |
| Frequency: | 50/60 | Noise: | 60-75dB(A) |
| Highlight: | 3 phase Industrial Axial Flow Fans,axial flow blower 380v,axial flow blower 850mm |
||

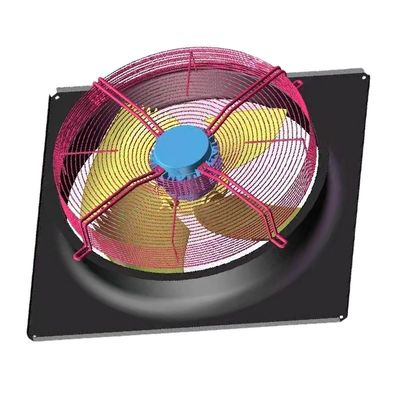

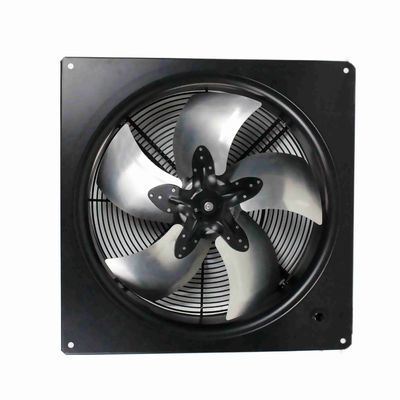

3 Phase 380V 850mm Industrial Axial Flow Fans For Unitary Duct Units
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting industrial axial flow fans, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.We can sell motors with fans as solution.
Industrial Axial Flow Fans Features
◇The optimal combination of high-efficiency wing-shaped silent blades and high-efficiency customized motors achieves perfect aerodynamic performance
◇The overall large arc roof plate, the flow field loss of the inlet is small, and the structural efficiency of the fan is high
◇The motor protection level is as high as IP66, and the operating temperature rise is low, which can achieve long-term reliable operation
◇Low energy consumption in operation, achieving low operating cost and low environmental pollution
◇Beautiful appearance, compact size, easy installation and maintenance
Product Specification
◇Size: Φ400~Φ990mm
◇Air volume range: maximum 35000m3/h
| Type | Motor | Voltage | Frequency | Speed | Airflow | Power | Current | Noise | Pst |
| (VAC) | (Hz) | (rpm) | (m3 /h) | (w) | (A) | (dBA) | (Pa) | ||
| FA700NB6-F5A-GZ01 | YYB160060006GZ01 | 380 | 50 | 925 | 12500 | 880 | 1.7 | 66 | 60 |
| FA750NB6-F5A-GZ02 | YYB160090006GZ02 | 380 | 50 | 925 | 15500 | 1190 | 2.3 | 69 | 60 |
| FA800NB6-F5A-GZ03 | YYB210150006GZ03 | 380 | 50 | 945 | 20000 | 1860 | 3.8 | 70.5 | 80 |
| FA850NB6-F5A-GZ04 | YYB210180006GZ04 | 380 | 50 | 915 | 24000 | 2460 | 4.8 | 72 | 80 |
| FA900NB6-F5A-GZ05 | YYB210180006GZ04 | 380 | 50 | 930 | 25000 | 2264 | 4.5 | 73 | 80 |
| FA900NB8-F5A-GZ06 | YYB210130008GZ06 | 380 | 50 | 725 | 21500 | 1780 | 4 | 67 | 80 |
Application
Air-cooled screw units, air-cooled module units, heating heat pump units, unitary duct units, rooftop units, etc
More information of Industrial Axial Flow Fans
Compared with centrifugal fans, axial flow fans have the following main characteristics:
The rotor structure of the axial flow fan is more complex than the rotor of the centrifugal fan, there are many rotating parts, the manufacturing accuracy requirements are high, and the quality requirements of the blade materials are also high. Therefore, the operating reliability of axial flow fan is slightly worse than that of centrifugal fans. However, dynamic and static blade adjustable axial flow fans are improved from design, structure, materials and manufacturing processes due to the introduction of technology from abroad, so that the operating reliability of the current axial flow fans is comparable to that of centrifugal fans.
