Product Details:
|
| Type: | CBB Capacitor | Voltage: | 110VAC-600VAC |
|---|---|---|---|
| Capacitance Tolerance: | ±3%、±5%、±10% | Safety Class: | S0/S1/S2 |
| Product Certificates: | VDE、UL、CUL | Value: | 1-200uF |
| Highlight: | 20uf ac motor start capacitors,80uf ac motor start capacitors,Single oval run capacitor |
||
20-80 Uf Explosion Proof Single Oval Capacitor For Output Filter
Introduction

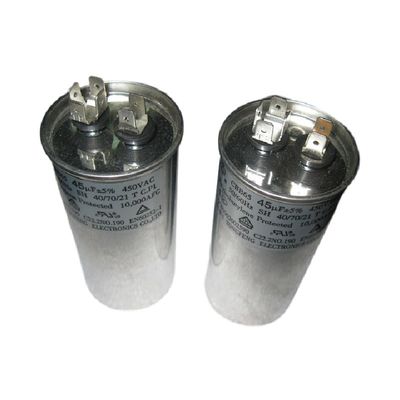

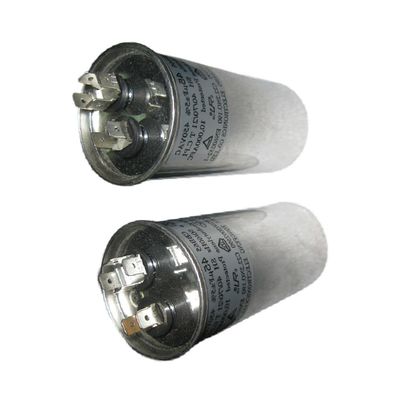

This is a type of top cover bulge capacitor for motors. It is designed for motors starting which used in air conditioner, dish washing machine and other similar application. The size, value and class can redesign base on different requirements, all capacitors get approval of CE, TUV, UL. We can sell capacitors along with our motor products. Feel free to send us motor or capacitor inquiry.
Standard
Feature
Law dissipation factor
Low temperature rise
Long service life
Excellent self healing property
Stable capacitance
Inner explosion-proof device
Application
Mainly as motor run capacitor for Air conditioner,washing machine, dishwasher, fan ect.
Technical parameter
| Rate voltage | 110VAC-600VAC |
| Overload voltage | Be allowable to operate under 1.1 Un |
| Tolerance | t5%,+10/一5%,+10% |
| Overload current | Be allowable to operate under 1.3 Un |
| Dissipation factor | tg6s0.0025(100Hz) |
|
Operation temperature |
40/70/21, 40/85/21 |
| Safety level | 10000AFCS2Class of operation: C(3000h) |
| Withstanding voltage |
between terminal to case 2000VAC or 2. 4Un+1200VAC
|
| Withstanding voltage |
between terminal to terminal: 2Un/5s
|
| Life expectation | 3000hours |
| Approval | UL,CULTUVVDE,CQC |
More information of motor capacitor
There are many types of capacitors, and different types of capacitors have different functions. In the central air conditioning system, electrolytic capacitors are often used as filter elements in the control circuit, and non-polar capacitors are used in series in the windings of the compressor (single-phase asynchronous) motor, so that the motor starting winding is started at the beginning, and the current runs ahead of the starting current by a phase angle, so as to obtain the starting torque and make the motor easy to start.
AC motor to connect capacitor, capacitance is to produce phase difference, and let the motor magnetic field produce "asynchronous", the motor will rotate.
