Product Details:
|
| Type: | CBB Capacitor | Voltage: | 110VAC-600VAC |
|---|---|---|---|
| Capacitance Tolerance: | ±3%、±5%、±10% | Safety Class: | S0/S1/S2 |
| Product Certificates: | VDE、UL、CUL | Value: | 1-200uF |
| Highlight: | 1uf electric motor run capacitor,100uf electric motor run capacitor,air conditioner motor capacitor single dual |
||

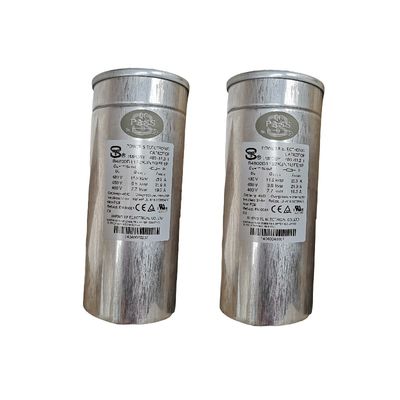

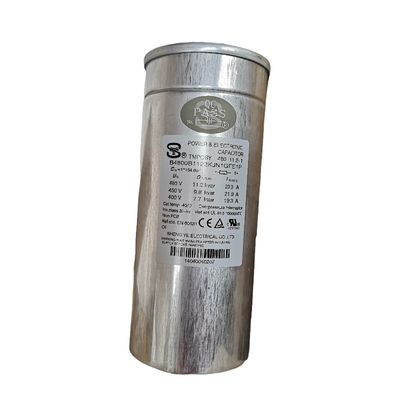

1-100uF Capacitor CBB65 450VAC Air Conditioner Motor Run Capacitor Single Dual
Introduction
This is a type of top cover bulge capacitor for motors. It is designed for motors starting which used in air conditioner, dish washing machine and other similar application. The size, value and class can redesign base on different requirements, all capacitors get approval of CE, TUV, UL. We can sell capacitors along with our motor products. Feel free to send us motor or capacitor inquiry.
Standard
Feature
Law dissipation factor
Low temperature rise
Long service life
Excellent self healing property
Stable capacitance
Inner explosion-proof device
Application
Mainly as motor run capacitor for Air conditioner,washing machine, dishwasher, fan ect.
Technical parameter
| Rate voltage | 110VAC-600VAC |
| Overload voltage | Be allowable to operate under 1.1 Un |
| Tolerance | t5%,+10/一5%,+10% |
| Overload current | Be allowable to operate under 1.3 Un |
| Dissipation factor | tg6s0.0025(100Hz) |
|
Operation temperature |
40/70/21, 40/85/21 |
| Safety level | 10000AFCS2Class of operation: C(3000h) |
| Withstanding voltage |
between terminal to case 2000VAC or 2. 4Un+1200VAC
|
| Withstanding voltage |
between terminal to terminal: 2Un/5s
|
| Life expectation | 3000hours |
| Approval | UL,CULTUVVDE,CQC |
More information of motor capacitor
There are many types of capacitors, and different types of capacitors have different functions.
How to choose the capacitor of the electric fan.
when we buy the capacitor, there will be a clear sign on the capacitor, such as CBB61, which represents its model, and there is 4.5uf on it, indicating its capacity. Adding or subtracting plus or minus 5% indicates that its capacity error is feasible as long as it is within this range.
We should choose different capacitors according to the power of the electric fan, and the choice must be within a reasonable range. There are many capacitor models sold on the market, if your electric fan power is 40 watts, you can choose a capacitor model between 1~1.5uf.
