Product Details:
|
| Type: | CBB Capacitor | Voltage: | 110VAC-600VAC |
|---|---|---|---|
| Capacitance Tolerance: | ±3%、±5%、±10% | Safety Class: | S0/S1/S2 |
| Product Certificates: | VDE、UL、CUL | Value: | 1-200uF |
| Highlight: | 1uf electric motor capacitor,10uf electric motor capacitor,Explosion Proof Capacitor 250VAC |
||

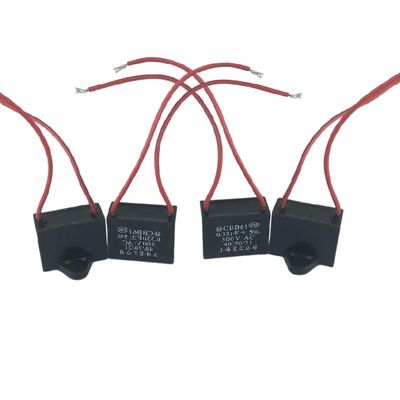

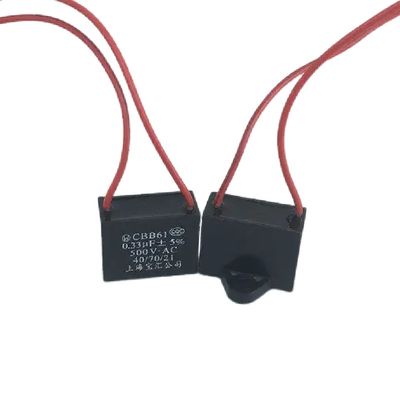

1-10 uf 250-400VAC Explosion proof capacitor for ceiling fan
Introduction
This is a type of top cover bulge capacitor for motors. It is designed for motors starting which used in air conditioner, dish washing machine and other similar application. The size, value and class can redesign base on different requirements, all capacitors get approval of CE, TUV, UL. We can sell capacitors along with our motor products. Feel free to send us motor or capacitor inquiry.
Standard
Feature
Law dissipation factor
Low temperature rise
Long service life
Excellent self healing property
Stable capacitance
Inner explosion-proof device
Application
Mainly as motor run capacitor for Air conditioner,washing machine, dishwasher, fan ect.
Technical parameter
| Rate voltage | 110VAC-600VAC |
| Overload voltage | Be allowable to operate under 1.1 Un |
| Tolerance | t5%,+10/一5%,+10% |
| Overload current | Be allowable to operate under 1.3 Un |
| Dissipation factor | tg6s0.0025(100Hz) |
|
Operation temperature |
40/70/21, 40/85/21 |
| Safety level | 10000AFCS2Class of operation: C(3000h) |
| Withstanding voltage |
between terminal to case 2000VAC or 2. 4Un+1200VAC
|
| Withstanding voltage |
between terminal to terminal: 2Un/5s
|
| Life expectation | 3000hours |
| Approval | UL,CULTUVVDE,CQC |
More information of motor capacitor
There are many types of capacitors, and different types of capacitors have different functions.
How to choose the capacitor of the electric fan
1. Because the electric fan also has different power, the size of the capacitor selected is also different. There are many capacitor models sold on the market, if your electric fan power is 40 watts, you can choose a capacitor model between 1~1.5uf.
2. If the power is slightly larger, the electric fan reaches about 70 watts, the capacitance should be larger, choose 2uf. There is also an electric fan with a power of 180 watts, which may be a ceiling fan, and the capacitor chosen is 3uf.
3. When choosing the capacitor, we must pay attention to the capacitance not being too large, otherwise it will damage the motor. However, if the capacitance is too small, it will make the electric fan unable to rotate, generally speaking, do not exceed 20%.
