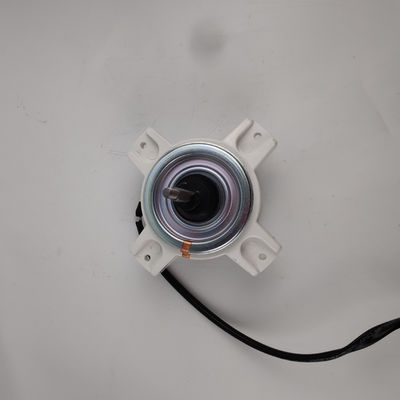

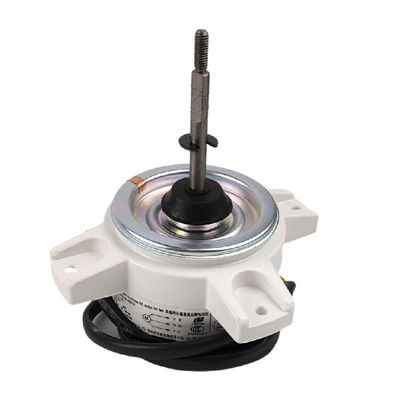

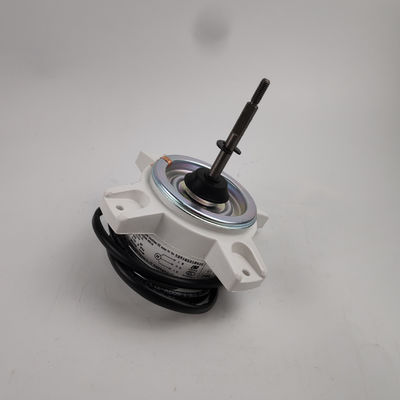

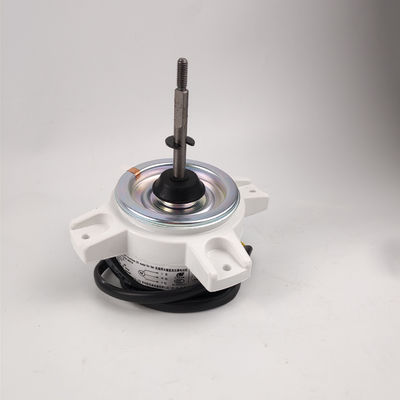

AC BLDC Motor DC310V 10-250W 800-1400 RPM Axial Fan For Air Conditioner Outdoor Unit

AC BLDC Motor DC310V 10-250W 800-1400 RPM axial fan for air conditioner outdoor unit

Introduction

This is a resin pack AC OR BLDC motor fan motor used in air conditioner. Our motor is mainly used in HVACR industry, such as radiator, evaporator, condenser, chiller, air conditioner and so on. This type of motor output power from 2W-250W; also used in such as freezer to compressor cooling fan, air dryer fan, FFU, fan motor, industrial and domestic air purification fan.

Motors can be customized by different requirements.

We can sell motors with fans as solution.

Specification

Quick Details

Output Power:10-250W

Type:AC BLDC motor, air conditioner fan motor

Certification:CCC, CE, ROHS, ISO9000

Protect Feature:Totally Enclosed

DC Voltage:24/48/110 V/310-340V

Insulation:Class B

AC BLDC Motor Feature

Steel packed Compact structure

Variable speed/high efficiency/low noise

Over heat/load/current protection

CCC/CE/UL certification

AC BLDC Motor Application

Split air conditioning outdoor unit

Room air conditioner fan coil unit

Air purifier

Air curtain

Ventilation fans

Fresh air system

Heat pump

AC BLDC Motor Information

The brushless BLDC motor is composed of the motor body and the driver. As the BLDC motor operates in the automatic mode, it does not need to use frequency conversion speed regulation mode to attach the starting winding to the rotor of the heavy-duty starting motor, and will not cause oscillation or out-of-step due to load mutation.

The bldc motor uses semiconductor switching devices to realize electronic commutation, that is, electronic switching devices to replace the traditional contact commutator and brush. The bldc motor is composed of permanent magnet rotor, multipole winding stator, position sensor and so on. According to the change of the rotor position, the position sensor changes the stator winding current in a certain sequence (that is, it detects the position of the magnetic pole of the rotor relative to the stator winding, generates the position detection signal, and the signal conversion circuit controls the power switching circuit, and the winding current switches according to a certain logical relationship). An electronic switching circuit controlled by the position sensor output provides the operating voltage of the stator windings.

BLDC motor has high reliability, no reversing spark and low mechanical noise. It is widely used in high-grade video recorders, video recorders, electronic instruments and automatic office equipment. Here is a particular point to explain, many people think brushless motor is DC motor, so it is called "brushless DC motor", in fact, brushless motor is a kind of AC motor, it is a three-phase AC permanent magnet motor.
