Product Details:
|
| Voltage: | 380～415 VAC /220V/110V | Frequency: | 50/60HZ |
|---|---|---|---|
| Power: | 300-1200W | Air Flow(max): | 6-8m³/min |
| Rated Pressure: | 1.3-1.5 Kpa | Noise Level: | 56-70 DB(A) |

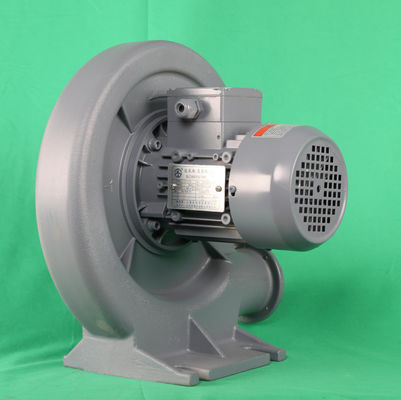

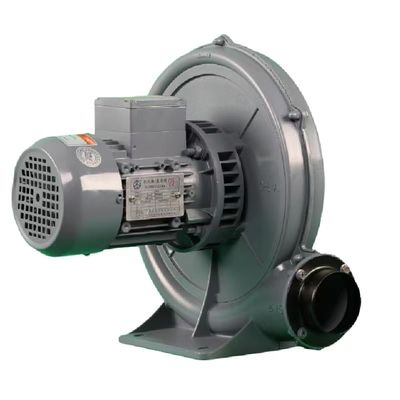

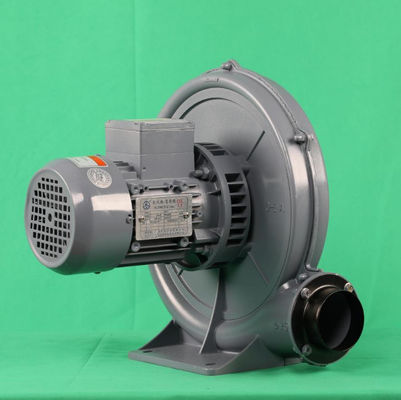

Single/Three Phase 1.5kpa high pressure heat insulation type permeable Centrifugal Blower Fan
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialize in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This motor can be also replaced with a BLDC Motor.
Specification
| TYPE | Frequency | Power | Rated Voltage | Rated Curent | Air Flow(max) | Rated Presure | Noise Level | In/Out Let |
| Hz | Kw | V | A | m³/min | Kpa | dB(A) | mm | |
| CX-75SH | 50 | 0.4 | 200-240A/345-415Y | 1.66△/0.96Y | 6 | 1.3 | 56 | IN 100 OUT 75 |
| 60 | 0.5 | 220-275A/380-480Y | 2.5△/1.46Y | 8 | 1.5 | 70 | ||
| CX-75H | 50 | 0.75 | 200-240A/345-415Y | 2.99△/1.73Y | 16 | 1.9 | 64 | IN 125 OUT 100 |
| 60 | 0.83 | 220-275A/380-480Y | 3.97A/2.3Y | 18 | 2.7 | 80 | ||
| CX-100H | 50 | 1.5 | 200-240A/345-415Y | 5.7△/3.3Y | 18 | 2.1 | 74 | IN 125 OUT 100 |
| 60 | 1.75 | 220-275A/380-480Y | 7A/4.1Y | 22 | 3.2 | 90 | ||
| CX-125H | 50 | 2.2 | 200-240A/345-415Y | 8.1△/4.7Y | 35 | 2.8 | 76 | IN 252 OUT 125 |
| 60 | 2.55 | 220-275△/380-480Y | 9.5△/5.5Y | 40 | 3.8 | 95 | ||
| CX-150H | 50 | 4 | 345-415A/600-720Y | 8A/4.62Y | 35 | 3.5 | 80 | IN 252 OUT 125 |
| 60 | 4.6 | 380-480A/660-720Y | 9A/5.20Y | 45 | 4 | 100 | ||
| CX-7.5H | 50 | 5.5 | 345-415△/600-720Y | 10.9△/6.3Y | 36 | 4.8 | 84 | IN 252 OUT 125 |
| 60 | 6.3 | 380-480A/660-720Y | 12A/6.94Y | 48 | 6 | 105 |
Quick Details
Type:Centrifugal Blower Fan
Electric Current Type:AC/DC/EC
Blade Material:aluminum/plastic
Voltage:110/120/220/230/380/460
Air Volume:300-4400 m³/h
Speed:customization available
Certification:CCC, CE,
Fan casing material:galvanized steel
Bearing:Ball Bearing /sleeve bearing
motor type:AC motor
Application:Oven , heater , air purifier , home appliances , floor heating
AC Centrifugal Blower Fan Features
1. Output power range: 0.4kW-6.3W
2. Fans speed 300-1500 adjustable
3. IP level:IP20/P43
Centrifugal Blower Fan Application
Centrifugal blower fan can be used in factories, workshops, warehouses and other departments, but also ventilation, cooling and dust removal, can also be used in agricultural production drying and cooling, centrifugal fan can be pumped into a large amount of air, promote air flow, promote grain, wheat, grain drying, easy to timely storage. Centrifugal blower fan can also be used for inflating large hovercraft or other inflatable objects, or it can be used as an underwater generator.
With the development of centrifugal blower fan for many years, the use has become more and more extensive, such as centrifugal blower fan in addition to the role of ventilation, but also dust removal, such centrifugal blower fan has become a good helper of dust removal in many industries, bring a clean environment for enterprises.
