Product Details:
|
| Name: | AC BLDC Motor | Voltage: | 12-24V |
|---|---|---|---|
| Phase: | Single Phase | Application: | Vibrating Machine |
| Power: | 5-100W | Speed: | 1000-5000rpm |
| Frequency: | 50/60hz | Insulation: | Class B |
| Highlight: | 24V AC BLDC Motor,Concrete Vibrator AC BLDC Motor,Mixing Truck Brushless Dc Motor |
||

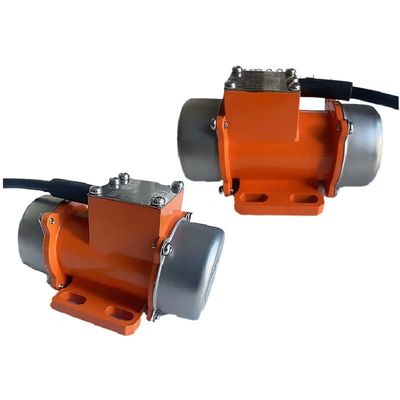

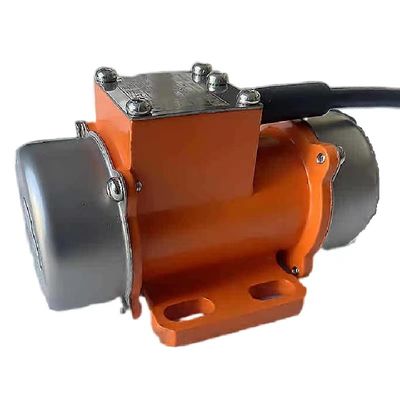

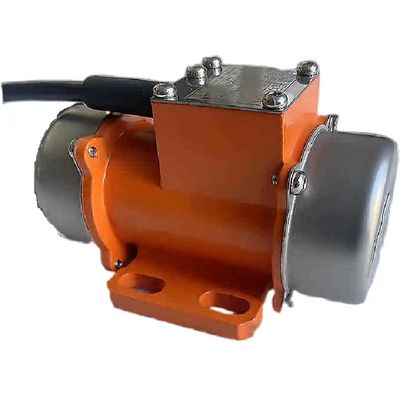

Mini Small Size DC12V 24V AC BLDC Motor For Vibrating Mixing Truck Loading Concrete Vibrator
This is a DC24V BLDC motor apply for vibrating mixing truck loading concrete vibrator, the motor power for typical model are 15Wto 100W. Hengsheng focus on producing AC and BLDC motors for really long time. We manufactured almost ally types motors for air conditioners and similar applications. Free free to send us en email for any motor inquiry.
Specification
Product name: AC BLDC motor
| Model | Voltage | Current | Power | Frequency | Force |
| V | A | W | 50Hz RPM | KG | |
| HY15DC24 | 24 | 1.0 | 15 | 4000 | 10 |
| HY20DC24 | 24 | 1.2 | 20 | 4000 | 15 |
| HY30DC24 | 24 | 1.5 | 30 | 4000 | 20 |
| HY40DC24 | 24 | 1.6 | 40 | 4000 | 25 |
| HY50DC24 | 24 | 1.7 | 50 | 4000 | 30 |
| HY60DC24 | 24 | 2.5 | 60 | 5000 | 60 |
| HY70DC24 | 24 | 2.9 | 70 | 5000 | 70 |
| HY80DC24 | 24 | 3.3 | 80 | 5000 | 80 |
| HY90DC24 | 24 | 3.8 | 90 | 5000 | 90 |
| HY100DC24 | 24 | 4.0 | 100 | 5000 | 100 |
Features of AC BLDC motor
Reasonable structure
Low noise
Long life
Over current protection
Application of AC BLDC motor
BLDC motors are widely used in a variety of load, constant load and positioning applications such as industrial control, automotive, aviation, automation systems, healthcare equipment and other fields. In recent years, due to the large-scale research and development of brushless BLDC motor and the gradual maturity of technology, the distribution range of its drive system in industrial production also expands, and it has gradually become the mainstream of industrial motor development.
3. Advantages and disadvantages of BLDC motor applications
Advantages of BLDC motor:
3. Advantages and disadvantages of BLDC motor applications
Advantages of BLDC motor:
1.1 Simple structure and reliable quality:
Cancel commutator, carbon brush, brush arm and other parts, no commutator welding, fine turning process.
1.2 Long service life:
The use of electronic components to replace the traditional commutator structure to eliminate the problem of short life caused by carbon brush and commutator commutation spark, mechanical wear, etc., and the motor life is increased by multiples.
1.3 Silent and efficient:
The structure without carbon brush and commutator avoids commutation spark and mechanical friction between carbon brush and commutator, resulting in noise and heat, causing motor energy loss and reducing motor efficiency. The efficiency of brushed DC motor is 60~70%, while the efficiency of brushless DC motor can be 75~90%
1.4 Broader speed regulation and control capabilities:
The use of precision electronic components and sensors can accurately control the output speed, torque and position of the motor to achieve intelligence and multi-function.Simple structure and reliable quality:
Cancel commutator, carbon brush, brush arm and other parts, no commutator welding, fine turning process.
