Product Details:
|
| Product Name: | AC BLDC Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 600-3000 | Power: | 380W-2200W |
| Voltage: | 110v-230v/380V | Insulation: | Class B/F |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | DC Permanent Magnet Brushless Motor,AGV Permanent Magnet Brushless Motor,Guided Truck AC BLDC Motor |
||

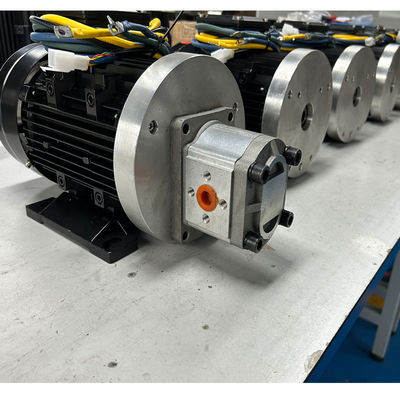

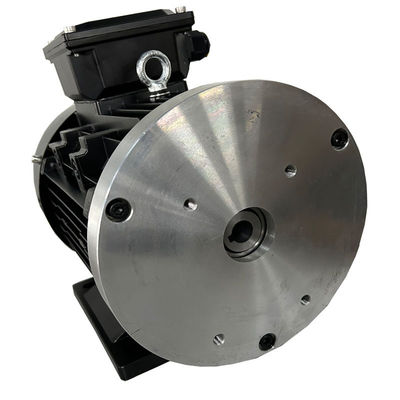

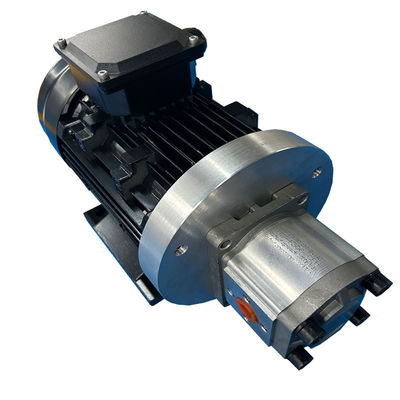

Y100 112 132 High Power DC Permanent Magnet Brushless AGV Hydraulic Guided Truck Motor
Introduction
This page shows a Y100 112 132 High Power DC Permanent Magnet Brushless Motor AGV Hydraulic Guided Truck Motor. Till now, Hengsheng has a variouty of specifications of electric water pump Motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.
Specification
| Rated Voltage (VDC) |
DC24V~ DC310V |
DC24V,36V,48V,60V,72V, 96V,110V,150V,220V,310V |
| Rated Power (KW) |
0.5KW~ 15KW |
0.5,0.75,1.2,1.5,2.5KW, 3,4,5,6.3,7.5,10,15KW |
| Rated Speed (r/min) |
800r/min~ 5000r/min |
800,1200,1500,2000 r/min 2500,3000,4000,5000r/min |
| Note: Motor installation methods B3, B5, B14, B35 The short-term power overload of the motor is 1.5 times, the torque overload is 3 times, and the ambient temperature is -20 °C ~ 80 °C. The above are our standard products, which can be customized according to customer requirements. |
||
Features of single phase AC BLDC MOTOR
Brushless DC motor is the trend of the future application market, and BLDC motor has been widely used on a large scale at home and abroad. High efficiency and energy saving are incomparable to AC motors. The motor adopts all copper winding, according to the actual application needs, choose aluminum shell or iron shell. The driver adopts imported chips, with stable performance and avant-garde solutions. All aspects of parameters are better than domestic chips, making the motor more efficient, flexible, changeable and other characteristics.
BLC motor used in AGV Truck
As the so-called "motor is the mother of industry, the friend of people's livelihood", according to statistics, motor electricity consumption accounts for 70% of the total industrial electricity consumption. For AGVs, the drive wheel motor is one of the important components that determine the key performance indicators of the product and the reliability of the whole machine.
At present, most AGV manufacturers use brushless DC motors as drive wheel motors, and brushless DC servo motors (equipped with encoders) are used for products with high positioning accuracy requirements.
The brushless Direct Current Motor (BLDCM) favored by AGV manufacturers refers to a low-power DC motor with electronic commutation, also known as commutatorless motor and commutator DC motor.
Hengsheng's products and services help every process achieve high levels of energy efficiency and production efficiency, even in the most demanding applications. Through preferred raw materials and advanced technology, single phase ac induction motors for the food and beverage industry can meet any process application challenge and operate reliably and continuously.
