Product Details:
|
| Voltage: | 380～415 VAC | Power: | 900W |
|---|---|---|---|
| Speed: | 900rpm | Blade Material: | Galvanized Plate |
| Airflow: | 15500 ±10% M³/h | IP Class: | IP 55 |
| Highlight: | 600mm industrial ventilating fan,900mm industrial ventilating fan,EC vertical cooling fan |
||
Introduction

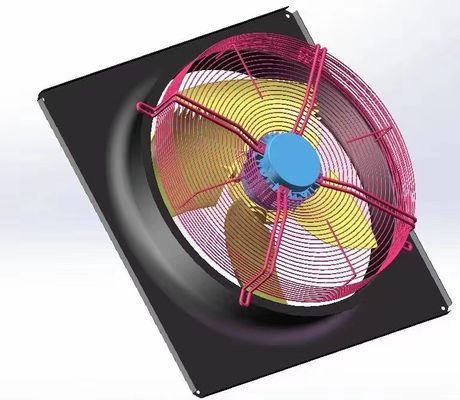

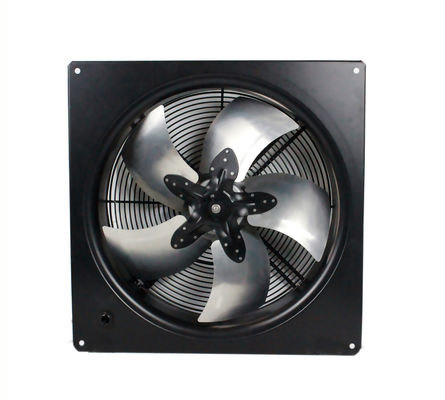

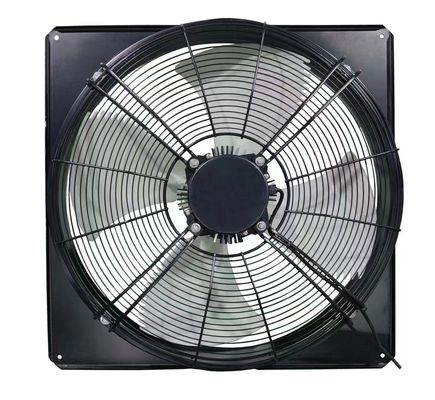

600mm-900mm Large size AC EC ventilating axial flow fan vertical axial cooling fans for greenhouse , warehouse ,cooling tower
Motors are customized by different requirements.
Quick Details
Model:FA750NB6-F5A-GZX04
Phase: 3
Voltage: 380 VAC
Frequency:50 Hz
Speed: 920 ±10% r/min
Power: 900 ±10% W
Current: 2.3 ±10% A
Static Pressure: 60 Pa
Airflow : 15500 ±10%
Noise: ≤69+1.5
IP Class: IP 55
ELECTRICAL PARAMETERS
Insulation Class: F
Voltage Range: 380～415 VAC
Electrical Strength: 2200V/1S/10mA
Protection: Over-temperature
Material
Wall ring: SPCC 2.0 , coated in Black matt plastic
Guard grille: Steel Wire, Electrophoresis and coated in Black matt plastic
Impeller: PA6+GF.
Motor
Inner rotor, three-phase AC motor, model number is YDK-160090006
More information
| 600-900mm Large size AC EC ventilating axial flow fan vertical axial cooling fans for greenhouse , warehouse ,cooling tower | |
| Protection Class : | IP44 |
| Insulation Class : | F |
| Min. amb. temperature : | -40℃ |
| Max. amb. temperature : | +60℃ |
| Speed control options | 1 speed , 2 speeds ,or 1-3 speeds adjustable |
| Mainly Applications : | · Electronic cabinet cooling · Clean room modules · Heat exchangers · Air filtration systems · Military HRAC · Pharmaceutical/biological control systems · Computer room air conditioning (CRAC) systems · Air-handling units |
