Product Details:
|
| Voltage: | 24-48V | Power: | 100-300W |
|---|---|---|---|
| Speed: | 75/120/160（rpm） | Type: | PMDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | DC24v AC DC Gear Motor,DC48v AC DC Gear Motor,brushed dc motor with gearbox 30w |
||

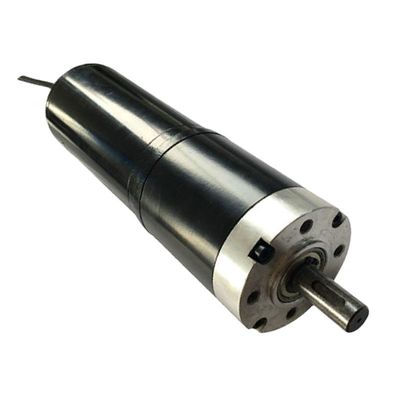

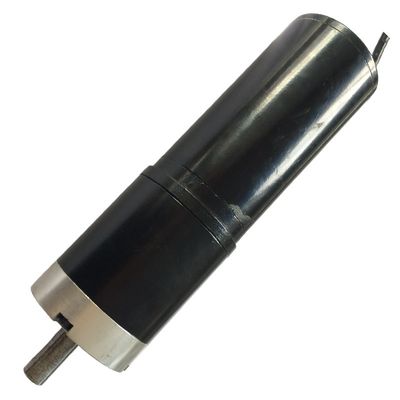

30-300W DC24-48V Brushed DC Gear Motor With Planetary Gearbox for model aircraft
Introduction
This is a permanent magnet brushed DC motor with planetary gearbox, power range 30-500W use in automatic license plate recognition, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:30-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/100V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No load | Rated load | N.m TORQUE |
Ratio |
Stage |
W POWER |
mm Length |
||
| A CURRENT |
rpm SPEED |
A CURRENT |
rpm SPEED |
|||||||
| 80JBX+76ZYT | 24 | 1.25 | 842 | 7.48 | 699 | 1.5 | 4.29 | 1 | 113 | 169 |
| 80JBX+76ZYT | 24 | 1.25 | 698 | 7.48 | 579 | 1.9 | 5.18 | |||
| 80JBX+76ZYT | 24 | 1.25 | 535 | 7.48 | 444 | 2.4 | 6.75 | |||
| 80.JBX+76ZYT | 24 | 1.39 | 201 | 7.48 | 167 | 5.8 | 18 | 2 | 102 | 190 |
| 80JBX+76ZYT | 24 | 1.39 | 125 | 7.48 | 103 | 9.4 | 29 | |||
| 80JBX+76ZYT | 24 | 1.39 | 103 | 7.48 | 86 | 11.3 | 35 | |||
| 80JBX+76ZYT | 24 | 1.54 | 46 | 7.48 | 38 | 23.1 | 79 | 3 | 92 | 212 |
| 80JBX+76ZYT | 24 | 1.54 | 24 | 7.48 | 20 | 43.8 | 150 | |||
| 80JBX+76ZYT | 24 | 1.54 | 15 | 7.48 | 13 | 68.9 | 236 | |||
| 80.JBX+76ZYT | 24 | 1.73 | 7 | 7.48 | 6 | 138.1 | 531 | 4 | 82 | 233 |
| 80JBX+76ZYT | 24 | 1.73 | 4 | 7.48 | 4 | 217.4 | 836 | |||
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
AC /DC Geared Motor Applications
DC geared motor, also known as gear reduction motor, is based on ordinary DC motor, plus supporting gear reduction box, because of its small size and good performance, it is widely used in many industries.
The working principle of DC geared motor
The gear reduction box provides lower speed, larger torque, and different reduction ratios can provide different speed and torque, which greatly improves the utilization rate of DC motors in the automation industry.
Geared motor refers to the integration of reducer and motor, which can also be called gear motor, usually integrated and assembled by a professional reducer manufacturer.
