Product Details:
|
| Voltage: | 24-48V | Power: | 50-200W |
|---|---|---|---|
| Speed: | 20/75/120/160（rpm） | Type: | BLDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | medical dc gear motor 24v,100W planetary dc motor,400W planetary dc motor |
||

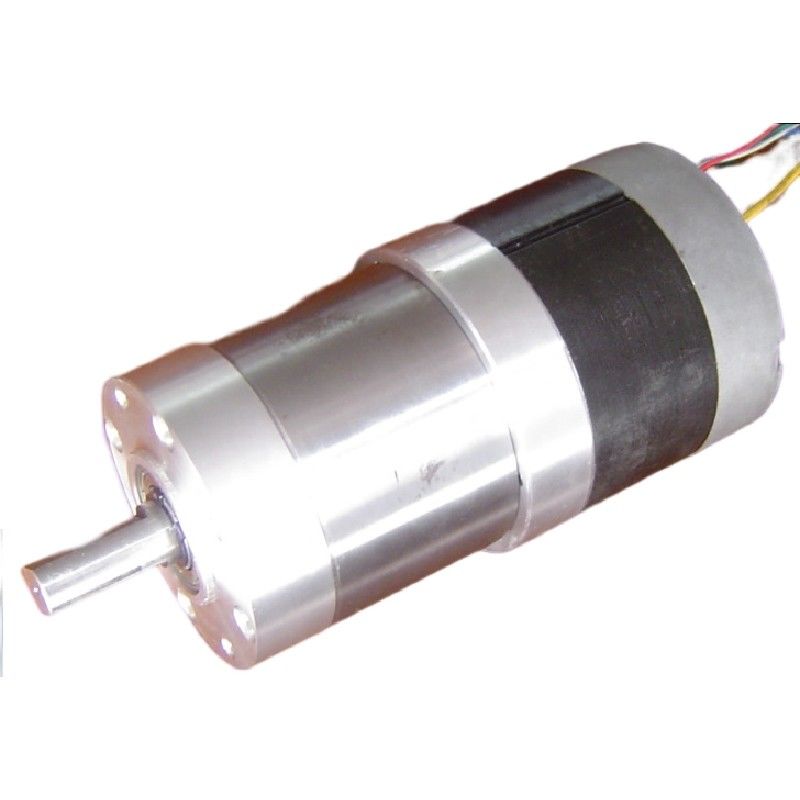

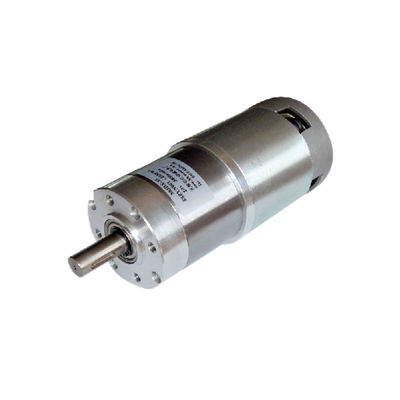

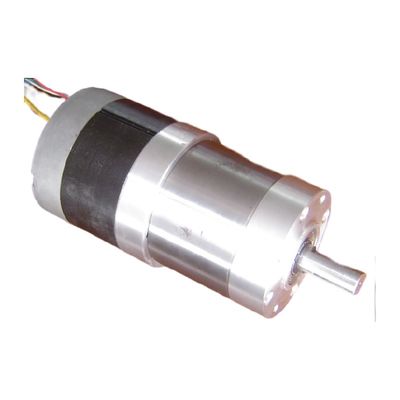

80JBX 24V 100-400W DC Gear Motor for medical air pump
Introduction
This is a permanent magnet brushed DC gear motor 100-400W use for Dust removal fog cannon truck and similar application. The gear motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC Gear Motor
Output Power:100-500W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24V/36V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m | Ratio | W | mm | ||
| CURRENT | SPEED | CURRENT | SPEED | TORQUE | Power | Length | |||
| 80JBX+88ZYNO40 | 24 | 3.12 | 842 | 18.70 | 699 | 3.9 | 4.29 | 283 | 271 |
| 80JBX+88ZYNO40 | 24 | 3.12 | 698 | 18.70 | 579 | 4.7 | 5.18 | ||
| 80JBX+88ZYNO40 | 24 | 3.12 | 535 | 18.70 | 444 | 6.1 | 6.75 | ||
| 80JBX+88ZYNO40 | 24 | 3.46 | 201 | 18.70 | 167 | 14.6 | 18 | 254 | 292 |
| 80JBX+88ZYNO40 | 24 | 3.46 | 125 | 18.70 | 103 | 23.5 | 29 | ||
| 80JBX+88ZYNO40 | 24 | 3.46 | 103 | 18.70 | 86 | 28.4 | 35 | ||
| 80JBX+88ZYNO40 | 24 | 3.84 | 46 | 18.70 | 38 | 57.7 | 79 | 229 | 314 |
| 80JBX+88ZYNO40 | 24 | 3.84 | 24 | 18.70 | 20 | 109.5 | 150 | ||
| 80JBX+88ZYNO40 | 24 | 3.84 | 15 | 18.70 | 13 | 172.3 | 236 | ||
| 80JBX+88ZYNO40 | 24 | 4.32 | 7 | 18.70 | 6 | 345.2 | 531 | 204 | 335 |
| 80JBX+88ZYNO40 | 24 | 4.32 | 4 | 18.70 | 4 | 543.4 | 836 | ||
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
AC DC Gear Motor Information
Features of DC gear motor:
DC or AC Gear reduction motor has compact structure, small size, beautiful shape and strong overload capacity. Fine processing, wrapping pipe positioning accuracy, all these constitute the gear transmission assembly of the DC geared motor equipped with various types of motors, forming mechatronics, completely wrapping the quality characteristics of the product; The coaxial helical gear ratio is finely graded, the selection range is wide, the speed type spectrum is wide, and the range is i=2-28800.
If need any types of dc gear motor.
