Product Details:
|
| Voltage: | 24-48V | Power: | 50-200W |
|---|---|---|---|
| Speed: | 20/75/120/160（rpm） | Type: | BLDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | AC DC Gear Motor 24V,PMDC Gear Motor 30W,PMDC Gear Motor 100W |
||

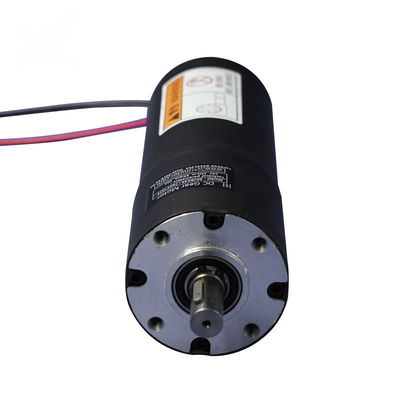

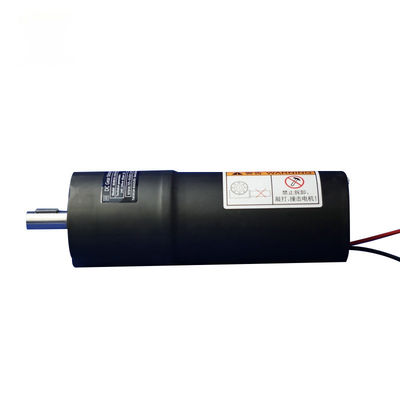

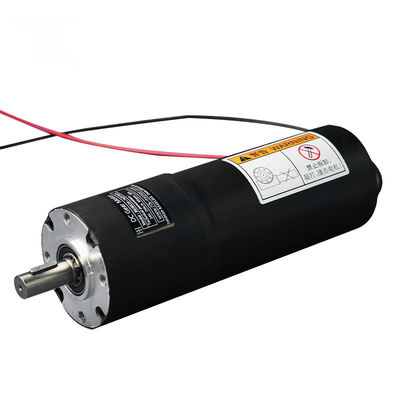

80JBX 24V 100-300W Permanent Magnet Brushed DC Gear Motor for Dust removal fog cannon truck
Introduction
This is a permanent magnet brushed DC gear motor 100-300W use for Dust removal fog cannon truck and similar application. The gear motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC Gear Motor
Output Power:100-500W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24V/36V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE |
Ratio | W | mm Length |
||
| CURRENT | SPEED | CURRENT | SPEED | Power | |||||
| 80JBX+76ZYT | 24 | 1.25 | 842 | 7.48 | 699 | 1.5 | 4.29 | 113 | 169 |
| 80JBX+76ZYT | 24 | 1.25 | 698 | 7.48 | 579 | 1.9 | 5.18 | ||
| 80JBX+76ZYT | 24 | 1.25 | 535 | 7.48 | 444 | 2.4 | 6.75 | ||
| 80JBX+76ZYT | 24 | 1.39 | 201 | 7.48 | 167 | 5.8 | 18 | 102 | 190 |
| 80JBX+76ZYT | 24 | 1.39 | 125 | 7.48 | 103 | 9.4 | 29 | ||
| 80JBX+76ZYT | 24 | 1.39 | 103 | 7.48 | 86 | 11.3 | 35 | ||
| 80JBX+76ZYT | 24 | 1.54 | 46 | 7.48 | 38 | 23.1 | 79 | 92 | 212 |
| 80JBX+76ZYT | 24 | 1.54 | 24 | 7.48 | 20 | 43.8 | 150 | ||
| 80JBX+76ZYT | 24 | 1.54 | 15 | 7.48 | 13 | 68.9 | 236 | ||
| 80JBX+76ZYT | 24 | 1.73 | 7 | 7.48 | 6 | 138.1 | 531 | 82 | 233 |
| 80JBX+76ZYT | 24 | 1.73 | 4 | 7.48 | 4 | 217.4 | 836 | ||
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
AC DC Gear Motor Information
Features of DC gear motor:
1. DC geared motor is the technical crystallization of the transmission industry and has high scientific and technological content; DC geared motor saves space, is reliable in use, can withstand a certain overload capacity, and the power can meet the demand; DC geared motor has low energy consumption and superior performance.
2. The DC geared motor has small oscillation, low noise, high energy saving, high-quality forged steel materials, rigid cast iron box, and high frequency heat out of the gear appearance; The new sealing device is adopted, which has good protection performance and strong adaptability to the environment, and can work continuously in harsh environments such as corrosion and humidity.
