Product Details:
|
| Voltage: | 24-48V | Power: | 100-550W |
|---|---|---|---|
| Speed: | 140/160/180（rpm） | Type: | AC DC Gear Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | MRP6 AC DC Gear Motor,dc24v AC DC Gear Motor,dc geared motor 390w |
||

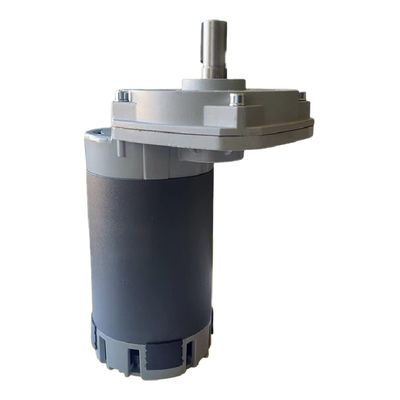

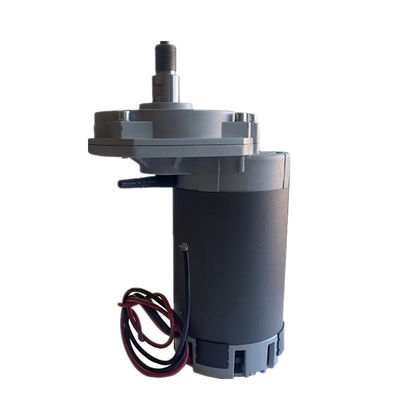

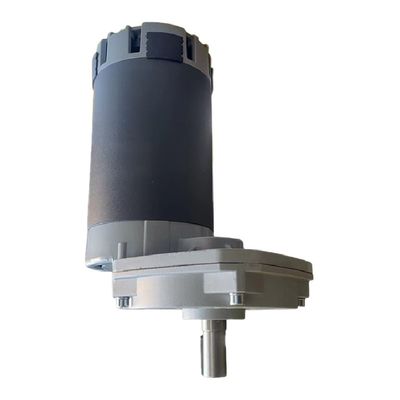

MRP6 DC24v 390W 550W DC geared motor for scrubber cleaning machine brush deck
Introduction
This is a 24V PMDC motor with planetary gearbox, power range 100-550W used for scrubber machine, or medical equipment, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC gear motor
Output Power:100-550W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m | Ratio | W | mm | ||
| CURRENT | SPEED | CURRENT | SPEED | TORQUE | Power | Length | |||
| 56JBX+57ZYT | 24 | 0.67 | 840 | 4.03 | 698 | 0.8 | 4.3 | 57 | 145 |
| 56JBX+57ZYT | 24 | 0.67 | 695 | 4.03 | 577 | 0.9 | 5.2 | ||
| 56JBX+57ZYT | 24 | 0.67 | 535 | 4.03 | 444 | 1.2 | 6.75 | ||
| 56JBX+57ZYT | 24 | 0.75 | 201 | 4.03 | 167 | 2.9 | 18 | 51 | 164 |
| 56JBX+57ZYT | 24 | 0.75 | 125 | 4.03 | 103 | 4.7 | 29 | ||
| 56JBX+57ZYT | 24 | 0.75 | 100 | 4.03 | 83 | 5.8 | 36 | ||
| 56JBX+57ZYT | 24 | 0.83 | 46 | 4.03 | 38 | 11.5 | 79 | 46 | 164 |
| 56JBX+57ZYT | 24 | 0.83 | 24 | 4.03 | 20 | 21.9 | 150 | ||
| 56JBX+57ZYT | 24 | 0.83 | 15 | 4.03 | 13 | 34.5 | 236 | ||
| 56JBX+57ZYT | 24 | 0.93 | 9 | 4.03 | 7 | 53.0 | 408 | 41 | 177 |
| 56JBX+57ZYT | 24 | 0.93 | 7 | 4.03 | 6 | 69.0 | 531 | ||
| 56JBX+57ZYT | 24 | 0.93 | 4 | 4.03 | 4 | 108.8 | 837 | ||
Application
Scrubber machine
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
More information of AC /DC Geared Motor
The meaning of the speed ratio of the reducer of the DC geared motor:
1. The reduction ratio, that is, the transmission ratio of the reduction device, is a kind of transmission ratio, which refers to the ratio of the instantaneous input speed to the output speed in the reduction mechanism, which is represented by the symbol "i";
2. The speed ratio of the reducer of the DC geared motor is the speed ratio of the input shaft and the output shaft, for example, the input shaft is 2000 rpm, the output shaft is 100 rpm, and the speed ratio is equal to 20;
The general reduction ratio is expressed by taking 1 as the denominator, and the ratio of the input speed and output speed connected with ":", such as the input speed is 1500r/min and the output speed is 25r/min, then the reduction ratio is: i=60:1.
That is, the reduction ratio, the ratio of input and output speed, is generally achieved by the reducer, but now there are many DC geared motors that encapsulate the reduction gear with the motor body, and the reduction ratio of the reduction gear can be called the speed ratio of the DC geared motor. Higher ratio output higher torque.
