Product Details:
|
| Voltage: | 24-48V | Power: | 30-100W |
|---|---|---|---|
| Speed: | 20/75/120/160（rpm） | Type: | BLDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | 30w dc planetary gear motor,100w dc planetary gear motor,24V micro gear motor |
||

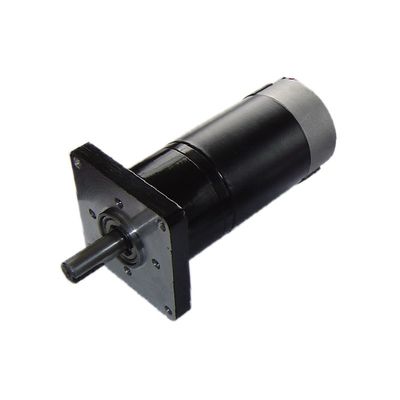

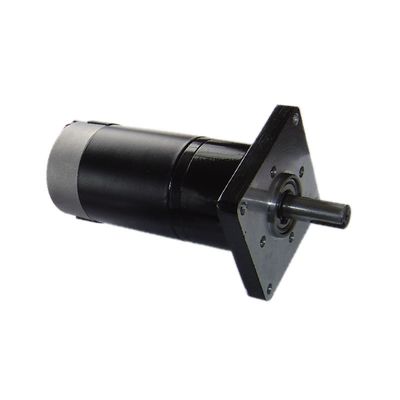

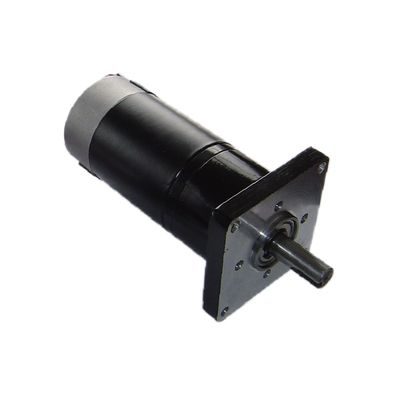

56JBX 24V 30-100W DC Mini planetary Gear Motor for Auto robot machine
Introduction
This is a permanent magnet brushed DC gear motor 30-100W use for Dust removal fog cannon truck and similar application. The gear motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC Gear Motor
Output Power:100-500W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24V/36V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m | Ratio | W | mm | ||
| CURRENT | SPEED | CURRENT | SPEED | TORQUE | Power | Length | |||
| 56JBX+57ZYT | 24 | 0.67 | 840 | 4.03 | 698 | 0.8 | 4.3 | 57 | 145 |
| 56JBX+57ZYT | 24 | 0.67 | 695 | 4.03 | 577 | 0.9 | 5.2 | ||
| 56JBX+57ZYT | 24 | 0.67 | 535 | 4.03 | 444 | 1.2 | 6.75 | ||
| 56JBX+57ZYT | 24 | 0.75 | 201 | 4.03 | 167 | 2.9 | 18 | 51 | 164 |
| 56JBX+57ZYT | 24 | 0.75 | 125 | 4.03 | 103 | 4.7 | 29 | ||
| 56JBX+57ZYT | 24 | 0.75 | 100 | 4.03 | 83 | 5.8 | 36 | ||
| 56JBX+57ZYT | 24 | 0.83 | 46 | 4.03 | 38 | 11.5 | 79 | 46 | 164 |
| 56JBX+57ZYT | 24 | 0.83 | 24 | 4.03 | 20 | 21.9 | 150 | ||
| 56JBX+57ZYT | 24 | 0.83 | 15 | 4.03 | 13 | 34.5 | 236 | ||
| 56JBX+57ZYT | 24 | 0.93 | 9 | 4.03 | 7 | 53.0 | 408 | 41 | 177 |
| 56JBX+57ZYT | 24 | 0.93 | 7 | 4.03 | 6 | 69.0 | 531 | ||
| 56JBX+57ZYT | 24 | 0.93 | 4 | 4.03 | 4 | 108.8 | 837 | ||
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
AC DC Gear Motor Information
Features of DC gear motor:
DC geared motor is the technical crystallization of the transmission industry and has high scientific and technological content; DC geared motor saves space, is reliable in use, can withstand a certain overload capacity, and the power can meet the demand; DC geared motor has low energy consumption and superior performance.
DC geared motor adopts a serialized and modular design, has a wide range of adaptability, and can be combined with a variety of other motors, device orientation and layout plans, and can select any speed and various layout methods according to actual needs.
