Product Details:
|
| Voltage: | 24-48V | Power: | 30-100W |
|---|---|---|---|
| Speed: | 20/75/120/160（rpm） | Type: | BLDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | 30w AC DC Gear Motor,100w AC DC Gear Motor,micro planetary gear motor 24V |
||

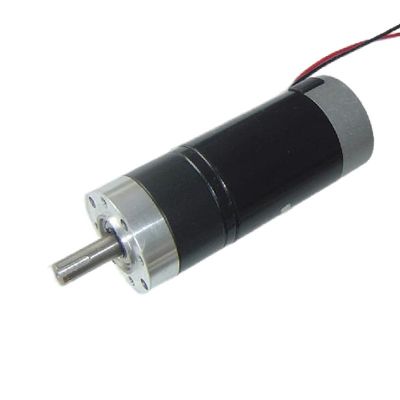

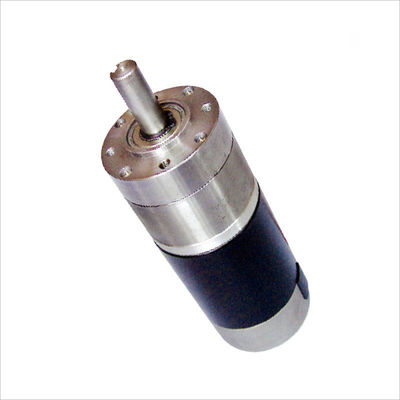

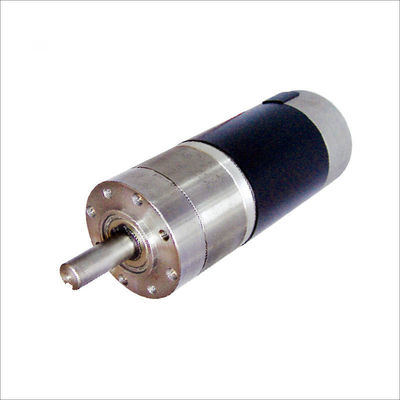

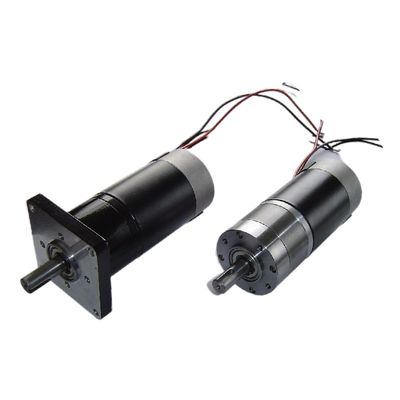

56JBX 24V 30-100W DC Mini planetary Gear Motor for Auto robot machine
Introduction
This is a permanent magnet brushed DC gear motor 30-100W use for Dust removal fog cannon truck and similar application. The gear motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC Gear Motor
Output Power:100-500W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24V/36V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m | Ratio | W | mm | ||
| CURRENT | SPEED | CURRENT | SPEED | TORQUE | Power | Length | |||
| 56JBX+57ZYT | 24 | 0.67 | 840 | 4.03 | 698 | 0.8 | 4.3 | 57 | 145 |
| 56JBX+57ZYT | 24 | 0.67 | 695 | 4.03 | 577 | 0.9 | 5.2 | ||
| 56JBX+57ZYT | 24 | 0.67 | 535 | 4.03 | 444 | 1.2 | 6.75 | ||
| 56JBX+57ZYT | 24 | 0.75 | 201 | 4.03 | 167 | 2.9 | 18 | 51 | 164 |
| 56JBX+57ZYT | 24 | 0.75 | 125 | 4.03 | 103 | 4.7 | 29 | ||
| 56JBX+57ZYT | 24 | 0.75 | 100 | 4.03 | 83 | 5.8 | 36 | ||
| 56JBX+57ZYT | 24 | 0.83 | 46 | 4.03 | 38 | 11.5 | 79 | 46 | 164 |
| 56JBX+57ZYT | 24 | 0.83 | 24 | 4.03 | 20 | 21.9 | 150 | ||
| 56JBX+57ZYT | 24 | 0.83 | 15 | 4.03 | 13 | 34.5 | 236 | ||
| 56JBX+57ZYT | 24 | 0.93 | 9 | 4.03 | 7 | 53.0 | 408 | 41 | 177 |
| 56JBX+57ZYT | 24 | 0.93 | 7 | 4.03 | 6 | 69.0 | 531 | ||
| 56JBX+57ZYT | 24 | 0.93 | 4 | 4.03 | 4 | 108.8 | 837 | ||
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
AC DC Gear Motor Information
Features of DC gear motor:
DC or AC Gear motor is low energy consumption, superior performance, reducer efficiency up to 96%, low vibration and low noise. DC geared motor adopts a serialized and modular design, has a wide range of adaptability, and can be combined with a variety of other motors, device orientation and layout plans, and can select any speed and various layout methods according to actual needs. DC gear motor has strong versatility, easy to use and maintain, low maintenance cost, especially the production line, only a few spare internal transmission parts can ensure the normal production of the whole line of maintenance.
